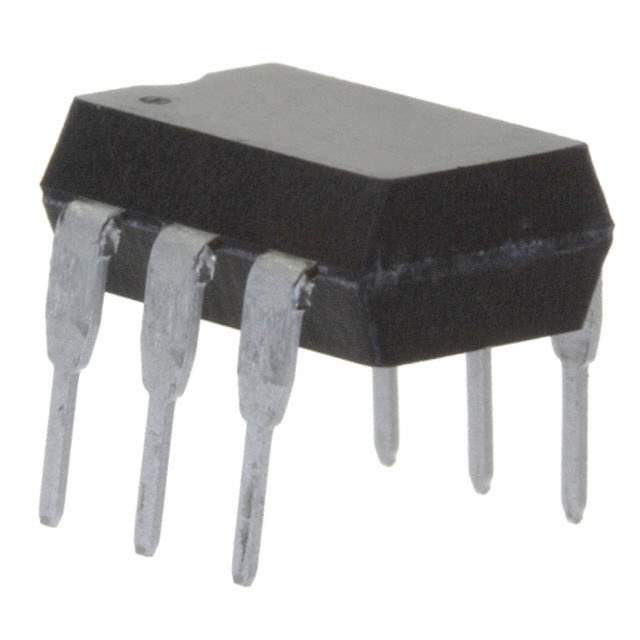

IL755-1X001 Real Image
Same model may have multiple batches, images only for reference.

IL755-1X001

Part No IL755-1X001
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV DARL W/BASE 6DIP  /  Optoisolator Darlington with Base Output 5300Vrms 1 Channel 6-DIP
Datasheet
IL755-1X001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 750% @ 2mA
Rise / Fall Time (Typ) 50µs, 50µs
Input Type AC, DC
Output Type Darlington with Base
Voltage - Output (Max) 60V
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 1V
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number IL755
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 50
Win Source Part Number 1009793-IL755-1X001
Ultra Librarian 3D Model Ultra Librarian IL755-1X001 CAD Model

Description

The IL755-1X001 is an optoisolator from Vishay Semiconductor Opto Division with a transistor, photovoltaic output.

  • Current Transfer Ratio: 750% @ 2mA
  • Isolation Voltage: 5300Vrms
  • Operating Temperature: -55°C to 100°C
  • Package: 6-DIP (0.300", 7.62mm)
