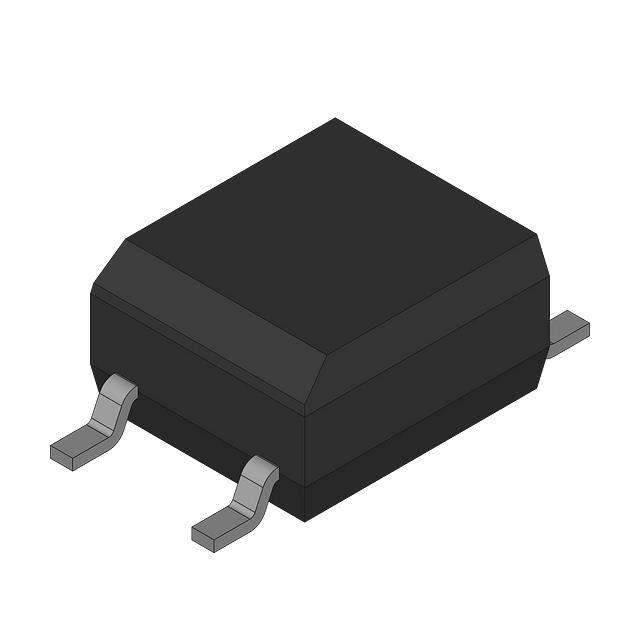

HMA121V Real Image
Same model may have multiple batches, images only for reference.

HMA121V

Part No HMA121V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 4SMD
Datasheet
HMA121V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 80mA
Forward Voltage 1.3V (Max)
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 127185-HMA121V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HMA121V CAD Model

Description

The Fairchild/ON Semiconductor HMA121V is an SMD (SMT) transistor output type isolator that has an isolation voltage of 3750Vrms. It has a channel output current of 80mA and a continuous forward current-max of 50mA. The supply and demand status is balanced. The minimum DC current transfer ratio is 50% @ 5mA and the maximum DC current transfer ratio is 600% @ 5mA. The rise and fall time is 3μs, 3μs. The maximum output voltage is 80V. It is a family member of the HMA series.
