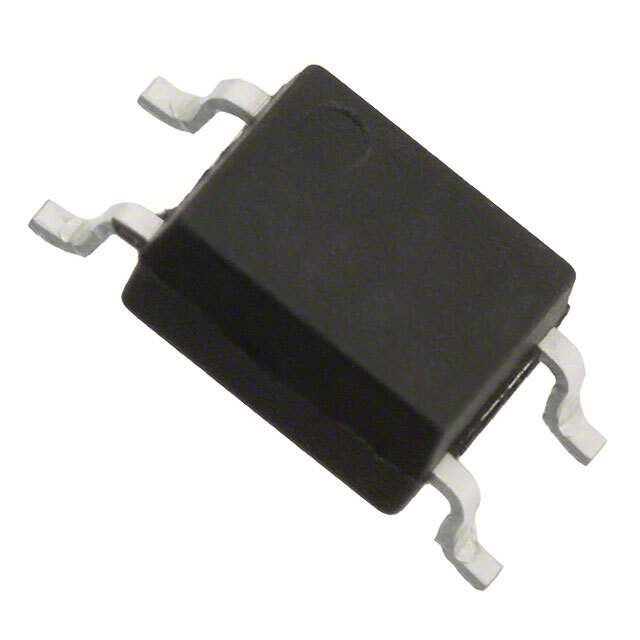

HCPL-181-00BE

Name: HCPL-181-00BE
Brand: Broadcom Limited
SKU: 141890
Availability: InStock
Rating: 4.84 (338 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCPL-181-00BE
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 3.75KV TRANS 4MINIFLAT / Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Broadcom Limited
Packaging	Reel - TR
Status	Active
Number of Channels	1
Isolation Voltage	3750Vrms
Minimum DC Current Transfer Ratio	130% @ 5mA
Maximum DC Current Transfer Ratio	260% @ 5mA
Rise and Fall Time	4μs, 3μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	80V
Channel Output Current	50mA
Forward Voltage	1.2V
Continuous forward current- Max	50mA
Vce Saturation (Max)	200mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	4-Mini-Flat
Win Source Part Number	016851-HCPL-181-00BE
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Quantity per package	3k pcs
Family Name	HCPL-181
Introduction Date	May 31, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian HCPL-181-00BE CAD Model

Alternative Products

Description

The HCPL-181-00BE is an isolator from Broadcom Limited designed for DC input applications.

DC Current Transfer Ratio: 130% (min) / 260% (max) @ 5mA
Switching Time: Turn-on/Turn-off -
Rise/Fall Time: 4μs / 3μs
Output Voltage: 80V
Channel Output Current: 50mA
Package: 4-Mini-Flat
Isolation Voltage: 3750Vrms
Temperature Range: -55°C to 100°C
Compliance: Halogen-Free
Supply/Demand: Balanced
