The TUSB214RWBR from Texas Instruments is a high-performance USB 2.0 high-speed signal conditioner designed to compensate for ISI signal loss in a transmission channel. This state-of-the-art device is essential for enhancing signal quality by adjusting the signal characteristics to maintain signal integrity over extended cable lengths.

Key Features

• Signal Quality Enhancement: The TUSB214RWBR employs adaptive equalization to optimize signal quality without the need for manual system tuning. This feature is crucial for maintaining high-speed data integrity across various physical mediums.
• USB 2.0 Compliance: This device is fully compliant with the USB 2.0 specification, ensuring compatibility with existing USB infrastructures and a seamless integration into your design.
• Adjustable Output Swing: The output swing can be adjusted through the use of external resistors, granting the user the ability to fine-tune the performance for specific applications or cable characteristics.
• Low Power Consumption: Designed for power efficiency, the TUSB214RWBR operates with minimal power consumption, making it ideal for portable and battery-powered applications.

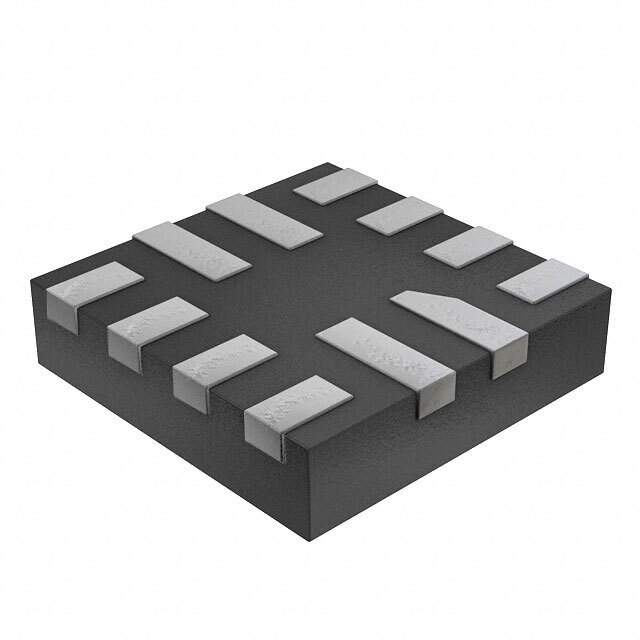

• Small Form Factor: Packaged in a small and convenient WQFN-16 package, it occupies minimal board space, which is critical for compact system designs.

Applications

The TUSB214RWBR is versatile and can be used in a variety of applications, including:

• Consumer electronics such as laptops, desktops, and docking stations
• Industrial control interfaces
• Data storage and communication devices
• USB port extenders and hubs

Technical Specifications

With an operating temperature range of -40°C to 85°C, the TUSB214RWBR provides reliable performance across diverse environmental conditions. The device supports a data rate of up to 480 Mbps, which is the standard for USB 2.0 high-speed communication.

Conclusion

Overall, the TUSB214RWBR is a robust USB 2.0 signal conditioner that offers a compact, power-efficient solution for extending USB 2.0 signals. Whether you are dealing with consumer electronics or industrial applications, this device from Texas Instruments stands as an excellent choice for maintaining signal integrity and ensuring high-speed data transfers over long distances.
