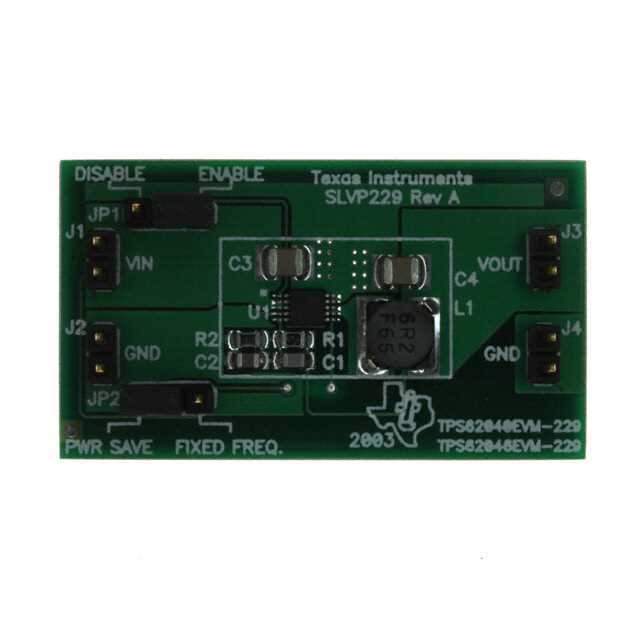

The TPS62040EVM-229 from Texas Instruments is a fully assembled and tested circuit for evaluating the TPS62040 DC-DC converter. This device offers a compact and efficient power management solution that is ideal for portable and battery-powered applications. The TPS62040 is a high-efficiency synchronous step-down converter that can deliver up to 600mA of continuous current to the load.

With an adjustable output voltage range from 0.8V to VIN, the TPS62040EVM-229 provides a flexible platform to test and optimize different voltage settings according to specific application requirements. The evaluation module operates over a wide input voltage range of 2.5V to 6V, making it suitable for a variety of input sources such as single-cell Li-Ion batteries, multi-cell Alkaline batteries, or regulated 5V and 3.3V power rails.

One of the key features of the TPS62040EVM-229 is its high efficiency, which is achieved through its synchronous step-down regulator design. This design minimizes power loss by eliminating the need for an external diode and utilizing low RDS(on) internal switches. The module also includes a Power Save Mode for light load efficiency, further extending battery life in portable applications.

The evaluation module comes with several test points and jumpers, which provide convenient access for probing and configuration of the circuit. Designers can easily enable or disable the power save mode, set different switching frequencies, and adjust soft-start times to suit their specific design needs.

For protection, the TPS62040EVM-229 includes features such as over-temperature protection and over-current protection, ensuring reliable operation under various conditions. Additionally, the module's thermal performance is optimized with a compact layout and appropriate heat sinking.

Overall, the TPS62040EVM-229 is a versatile tool that allows designers to quickly and efficiently evaluate the performance of the TPS62040 DC-DC converter and expedite the development of power management solutions for their applications.
