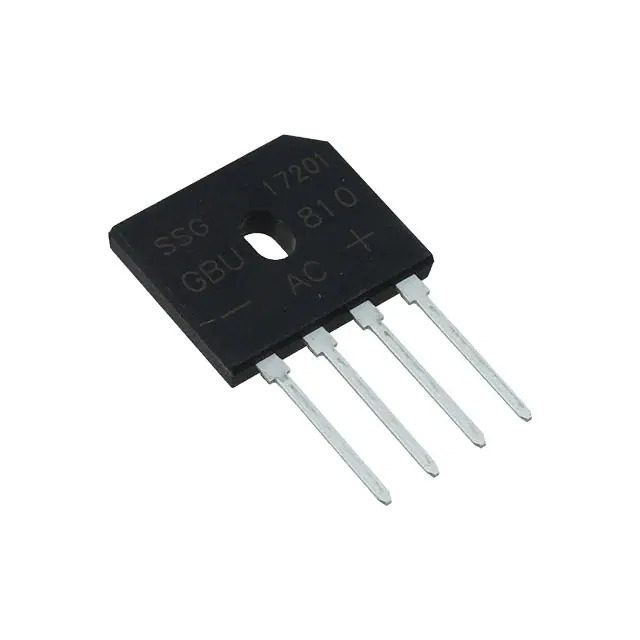

Same model may have multiple batches, images only for reference.
GBU1504 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

GBU1504

Part No GBU1504
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 400V 15A GBU
Datasheet
GBU1504 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU1504
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367859-GBU1504
Ultra Librarian 3D Model Ultra Librarian GBU1504 CAD Model

Description

The SMC Diode Solutions GBU1504 is a single-phase bridge rectifier with an average rectified current of 15A.

  • Average Rectified Current: 15A
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Through Hole
  • Package: 4-ESIP
  • Voltage Forward Drop: 1.1V @ 15A
  • Peak Reverse Voltage: 400V
  • Product Status: Active
