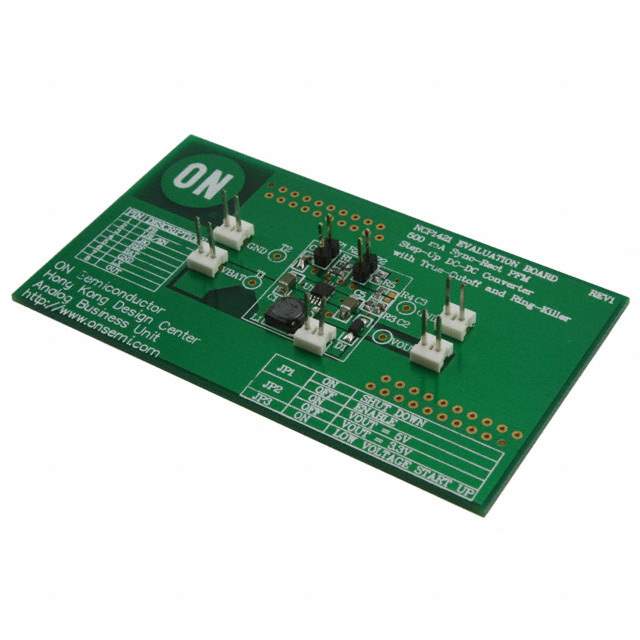

The ON Semiconductor NCP1421EVB Evaluation Board is a comprehensive platform designed for testing and evaluating the capabilities of the NCP1421 DC-DC converter. This high-performance tool is tailored for engineers and designers who require a reliable and efficient power solution for their portable applications.

Key Features:

• Integrated DC-DC Converter: At the heart of the NCP1421EVB is the NCP1421, a versatile step-up DC-DC converter that delivers exceptional performance with a high switching frequency that allows for the use of small, low-cost inductors and capacitors.
• Adjustable Output Voltage: The evaluation board provides the flexibility to adjust the output voltage to meet the specific needs of your application, ensuring a wide range of portable devices can be powered efficiently.
• High Efficiency: The NCP1421 is designed for high efficiency across a wide range of load conditions, making it ideal for battery-powered applications where maximizing battery life is critical.
• Low Power Consumption: The converter features a low quiescent current and a shutdown mode that minimizes power consumption when the device is not in active use.
• Compact Design: The NCP1421EVB is designed with a compact form factor, making it easy to integrate into existing designs or use in space-constrained applications.

Applications:

The NCP1421EVB is suitable for a variety of applications, including but not limited to:

• Portable Media Players
• Handheld Devices
• Battery-Powered Equipment
• Wireless Communications
• Personal Digital Assistants (PDAs)

Technical Specifications:

• Input Voltage Range: 0.8V to V<sub>OUT
• Output Voltage Range: 1.8V to 5.0V (adjustable)
• Switching Frequency: Up to 2 MHz
• Efficiency: Up to 96%

With the NCP1421EVB Evaluation Board from ON Semiconductor, designers have a powerful tool at their disposal to streamline the development process and accelerate the time-to-market for their portable power solutions. The combination of efficiency, flexibility, and compact design makes it an excellent choice for a wide range of applications.
