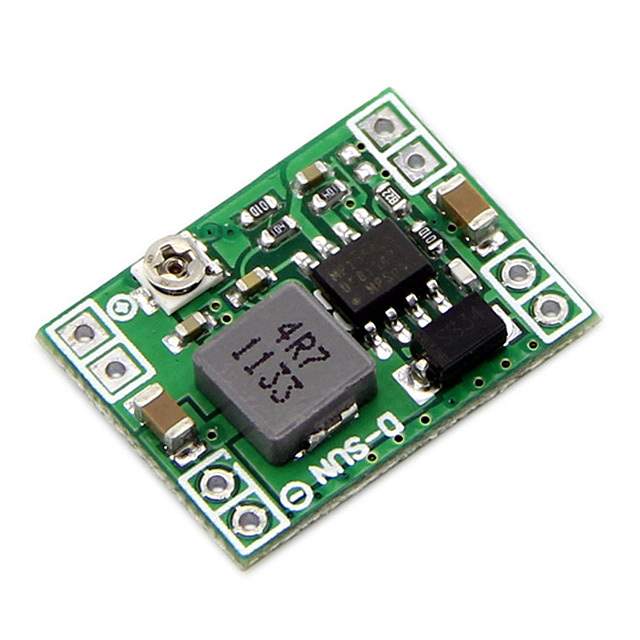

106990005 Real Image
Same model may have multiple batches, images only for reference.

106990005

Part No 106990005
Manufacturer Seeed Technology Co., Ltd
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description ADJUSTABLE STEP-DOWN DC/DC CONVE / MP1584 DC to DC Converter and Switching Regulator Chip 0.8VDC to 18VDC Output Development Tool
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Seeed Technology Co., Ltd
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 0.8 V ~ 18 V
Output Current 3A
Voltage - Input 4.5 V ~ 28 V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MP1584
Win Source Part Number 789100-106990005
Popularity Medium
Supply and Demand Status Sufficient
Family Name 106990005
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian 106990005 CAD Model

Description

The MP1584 DC/DC step-down regulator board, manufactured by Seeed Technology Co., Ltd, is a fully populated board.

  • Output Voltage: 0.8 V to 18 V
  • Input Voltage: 4.5 V to 28 V
  • Output Current: 3A
  • IC: MP1584
  • Isolation: Non-isolated
  • Outputs: 1
  • Packaging: Bulk
  • Applications: Development boards, kits, and programmer
