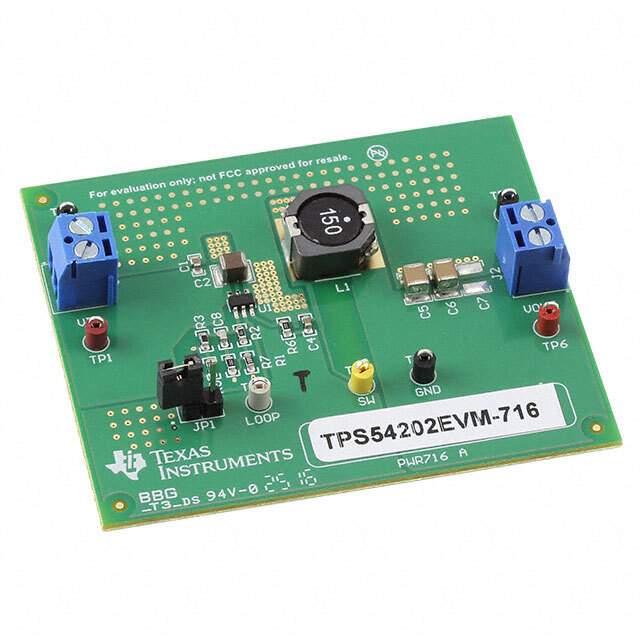

Product Overview: TPS54202EVM-716 from Texas Instruments

The TPS54202EVM-716 is a fully assembled and tested evaluation module for the TPS54202 synchronous step-down DC/DC converter from Texas Instruments. This product is designed to demonstrate the small printed-circuit-board areas that may be achieved when designing with the TPS54202 regulator. The TPS54202 is a highly efficient, switch-mode power supply with a compact package, making it ideal for a wide range of applications including consumer electronics, networking, and industrial systems.

Key Features:

• Input Voltage Range: The TPS54202EVM-716 operates over a wide input voltage range from 4.5V to 28V, making it versatile for various power supply scenarios.
• Output Voltage: The module provides an adjustable output voltage that can be set from 0.8V to a maximum of 85% of the input voltage, allowing for a broad range of use-cases.
• High Efficiency: With an integrated synchronous switch, the TPS54202EVM-716 offers high efficiency, which is beneficial for reducing heat and improving system performance.
• Current Capability: The device can deliver up to 2A of continuous output current, which is suitable for powering a wide array of components.
• Thermal Management: The module includes thermal shutdown and overcurrent protection, safeguarding the device and the system under extreme conditions.
• Small Footprint: The compact size of the TPS54202EVM-716 is a result of Texas Instruments' innovative packaging and the high level of integration within the TPS54202 chip.

Applications:

The TPS54202EVM-716 is designed for use in a variety of applications, including:

• Point of Load conversions from 5V or 12V rails
• Aftermarket automotive supplies
• Portable and battery-powered equipment
• Networking and telecommunication infrastructure
• Consumer electronics

Easy to Use:

The evaluation module includes easy-to-use features such as test points and jumper connectors for easy probing and adjustments. It also comes with comprehensive documentation, including a user guide that provides detailed instructions for use and modification of the board to help designers quickly evaluate the performance of the TPS54202 converter in their specific application.

The TPS54202EVM-716 from Texas Instruments is an exemplary tool for engineers and designers looking to evaluate the TPS54202 converter's capabilities and implement it into their power management solutions.
