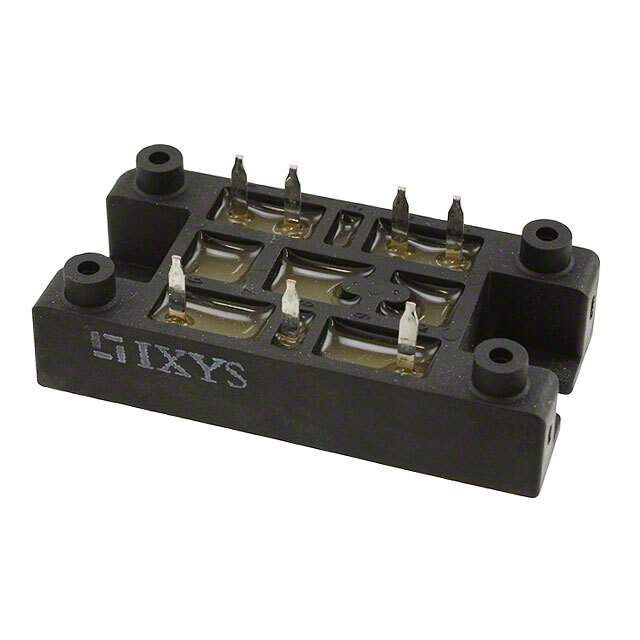

MDMA120U1600VA Real Image
Same model may have multiple batches, images only for reference.

MDMA120U1600VA

Part No MDMA120U1600VA
Manufacturer IXYS
Catalog Bridge Rectifiers
Description 3-PH. REC. BRIDGE, B6U / Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount V1-A
Datasheet
MDMA120U1600VA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr IXYS
Package Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.6 kV
Current - Average Rectified (Io) 120 A
Voltage - Forward (Vf) (Max) @ If 1.42 V @ 120 A
Current - Reverse Leakage @ Vr 40 µA @ 1600 V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package V1-A
Base Product Number MDMA120
Standard Package 24
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1338289-MDMA120U1600VA
Ultra Librarian 3D Model Ultra Librarian MDMA120U1600VA CAD Model

Description

The MDMA120U1600VA is a three-phase bridge rectifier diode that offers an average rectified current of 120A and a peak reverse voltage of 1.6kV.

  • Type: Three-Phase Bridge Rectifier Diode
  • Average Rectified Current: 120A
  • Peak Reverse Voltage: 1.6kV
  • Mounting Type: Chassis Mount
  • Package: V1-A Module
  • Operating Temperature: -40°C to 150°C
