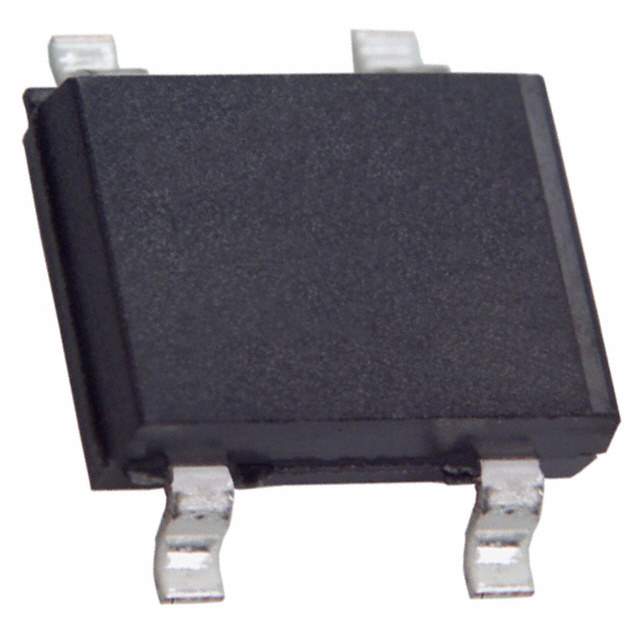

B1010S_R2_00001 Real Image
Same model may have multiple batches, images only for reference.

B1010S_R2_00001

Part No B1010S_R2_00001
Manufacturer Panjit
Catalog Bridge Rectifiers
Description MINI SURFACE MOUNT GLASS PASSIVA / Bridge Rectifier Single Phase Standard 1 kV Surface Mount 4-MDI
Datasheet
B1010S_R2_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Panjit International Inc.
Series B1005S
Package Tape & Reel
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-MDI
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-B1010S_R2_00001CT,3757-B1010S_R2_00001DKR,3757-B1010S_R2_00001TR
Standard Package 3,000
Win Source Part Number 965753-B1010S_R2_00001
Ultra Librarian 3D Model Ultra Librarian B1010S_R2_00001 CAD Model

Description

The 965753-B1010S_R2_00001 is a single-phase bridge rectifier diode that is designed for use in various electronic circuits.

  • Maximum Peak Reverse Voltage: 1 kV
  • Average Rectified Current: 1 A
  • Voltage Drop: 1.1 V @ 1 A
  • Package: 4-SMD, Gull-Wing
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -55°C to 150°C
