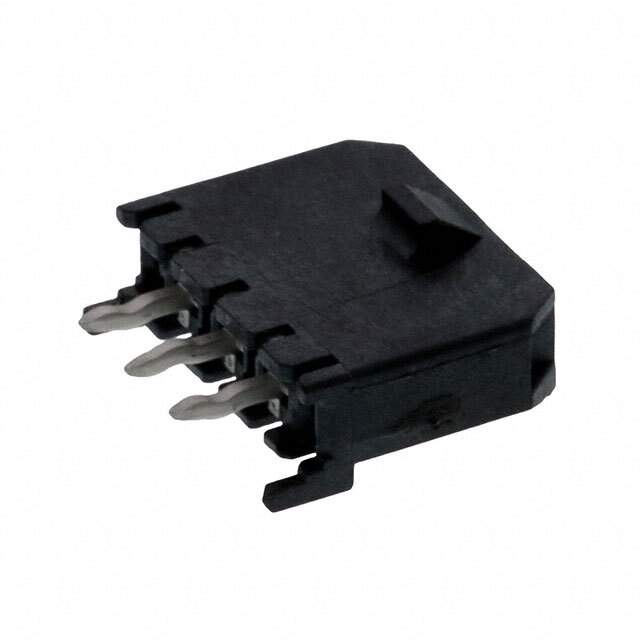

The Molex 43650-0316 is a Micro-Fit 3.0 header, a key component in the Micro-Fit 3.0 connector system. It's engineered to deliver a secure and reliable connection in various electronic applications. The Micro-Fit 3.0 series is known for its compact design and ability to handle significant current, making it a versatile choice for board-to-wire connections.

Applications

• Industrial equipment
• Consumer electronics
• Telecommunications
• Data centers
• Automotive applications

Features

• Three Rows: Provides a high pin count for increased signal and power options.
• Positive Lock: Ensures a secure connection that prevents accidental disconnections.
• 3.0mm Pitch: Offers a compact solution while maintaining robust current carrying capabilities.
• Through-Hole Mount: Designed for secure and reliable PCB attachment.
• High-Temperature Plastic: Suitable for reflow soldering processes.

Benefits

• Reliable Connection: The positive lock and durable construction ensure a stable electrical connection.
• Space-Saving Design: The compact Micro-Fit 3.0 design allows for use in tight spaces.
• Easy to Assemble: Designed for easy PCB mounting and mating with compatible receptacles.
• Durable Performance: Withstands harsh environmental conditions and mechanical stress.
• Versatile: Suitable for a wide range of applications requiring a compact and reliable power or signal connection.

Additional Details

The 43650-0316 header is typically made from a high-temperature thermoplastic that can withstand the heat of soldering processes. It is crucial to refer to the Molex product datasheet for specific voltage and current ratings, operating temperature ranges, and applicable safety standards. Proper soldering techniques are essential for ensuring a reliable connection to the PCB. This header is designed to mate with Micro-Fit 3.0 receptacles that accept crimp terminals. The three-row design allows for a higher density of connections compared to single- or dual-row options.
