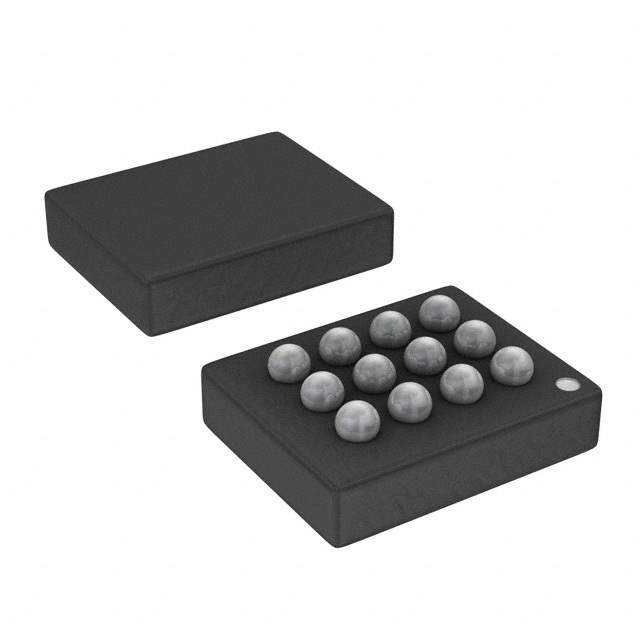

The TPD1S514-3YZR from Texas Instruments is a single-chip solution specifically designed to provide comprehensive protection for USB interfaces. This highly integrated device is optimized for USB Type-C and Standard-A power bus and data line applications. The TPD1S514-3YZR is housed in a compact, leadless DSBGA package, making it ideal for space-constrained designs.

Key Features

• Integrated Protection: The device integrates a 5.5-V, 1.5-A power switch with over-current, over-voltage, under-voltage, and reverse-current protection, ensuring the USB interface is shielded from various electrical hazards.
• ESD Protection: It features ±8-kV Contact and ±15-kV Air-Gap ESD protection on the VBUS pin, in accordance with the IEC 61000-4-2 standard, providing robust defense against electrostatic discharges.
• Low R_ON: With a low on-resistance of just 80 mΩ (typical), the power switch ensures minimal voltage drop and power loss, enhancing the efficiency of the USB interface.
• Charging Port Control: The TPD1S514-3YZR supports both USB 2.0 and USB 3.0 data rates and offers a charging port control logic feature, which is compliant with the USB Battery Charging Specification Rev 1.2.

Applications

The TPD1S514-3YZR is suitable for a wide range of applications where USB interface protection is critical. These include:

• Smartphones and Tablets
• Portable Electronics
• Wearable Devices
• USB Hubs, Peripherals, and Accessories
• Notebooks and Ultrabooks

Technical Specifications

Overall, the TPD1S514-3YZR from Texas Instruments stands out as a versatile and reliable choice for protecting USB interfaces in a variety of electronic devices, ensuring both safety and functionality in the face of electrical disturbances.
