Part No 628-025-321-251
Manufacturer EDAC Inc.
Catalog D - Sub Connectors
Description 628 SERIES VERTICAL METAL SHELL / 25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
628-025-321-251 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr EDAC Inc.
Series 628 (Metal)
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A per Contact
Features Shielded
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Brass
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 628-025
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-628-025-321-251
Standard Package 1,000
Win Source Part Number 1039614-628-025-321-251
Ultra Librarian 3D Model Ultra Librarian 628-025-321-251 CAD Model

Description

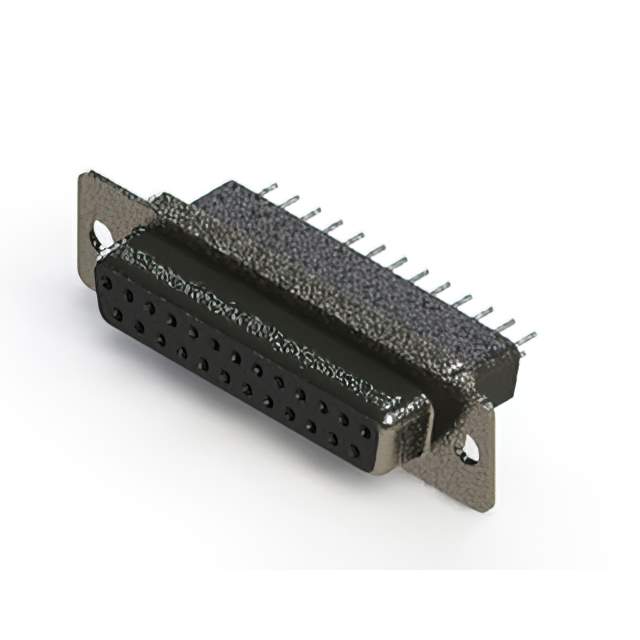

This 628 series metal D-sub connector is a shielded receptacle with 25 female sockets.

  • Gender: Female
  • Sockets: 25
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Flammability Rating: UL94 V-0
  • Shell Material: Steel
  • Shell Plating: Tin
  • Connector Layout: 3 (DB, B)
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to 85°C
  • Current Rating: 3A per Contact
