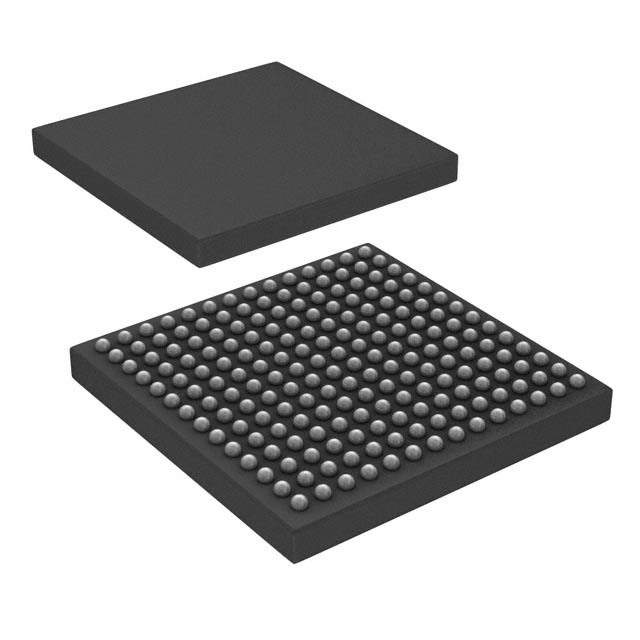

The TMS320C5504AZCH15 is a high-performance, low-power digital signal processor (DSP) from Texas Instruments (TI), designed to meet the rigorous demands of modern signal processing tasks. This device is part of TI's TMS320C5000™ DSP family, which is renowned for its efficient processing capabilities and is widely used in applications such as audio, telecommunication, and biomedical signal processing.

Key Features

• High Performance: With a core frequency of up to 300MHz, the TMS320C5504AZCH15 delivers up to 2400 MIPS (Million Instructions Per Second), which enables real-time processing of complex algorithms and signal processing tasks.
• Low Power Consumption: TI's advanced 90nm CMOS technology allows for reduced power consumption, making it an ideal choice for battery-powered and portable devices where power efficiency is critical.
• Integrated Peripherals: The device includes a variety of integrated peripherals such as a multichannel buffered serial port, I2C Bus, SPI, and a high-speed USB 2.0 interface, which facilitate easy connectivity and data transfer with other devices.
• On-Chip Memory: It comes equipped with 320KB of on-chip RAM and 64KB of on-chip ROM, allowing for efficient program execution and data storage without the need for external memory components.
• Enhanced Audio Features: The DSP includes specialized hardware for audio processing, such as digital filters and a Direct Memory Access (DMA) controller, which enhance audio performance for voice and music applications.

Applications

The versatility of the TMS320C5504AZCH15 makes it suitable for a wide range of applications. It is particularly effective in:

• Portable audio devices
• Voice recognition and processing systems
• Medical imaging and diagnostic equipment
• Wireless communication devices like modems and baseband processing

Design Support

TI provides comprehensive design support for the TMS320C5504AZCH15, including development tools, software libraries, and reference designs. This support helps to reduce development time and allows engineers to bring their products to market more quickly.

In summary, the TMS320C5504AZCH15 is a powerful DSP that combines high performance with low power consumption and a rich set of integrated peripherals, making it an excellent choice for designers looking to create advanced digital signal processing systems.
