The Texas Instruments HD3SS3412ARUAR is a high-performance, versatile USB 3.1 Gen 1 SuperSpeed 2:1 Multiplexer/Demultiplexer switch. This advanced semiconductor device is designed to provide an efficient solution for switching between two USB 3.1 Gen 1 sources or destinations. It is a crucial component for applications requiring high-speed data transfer and is commonly used in consumer electronics, computing devices, and communication infrastructure.

Key Features

• USB 3.1 Gen 1 Compliance: The HD3SS3412ARUAR supports data rates up to 5 Gbps, making it compliant with the USB 3.1 Gen 1 standard for SuperSpeed data transfer.
• Bi-Directional Switching: It can switch two differential channels (TX/RX) to one of two locations, allowing for flexible connectivity options.
• Low Power Consumption: Designed for power efficiency, the device operates with minimal power consumption, reducing the overall power requirements for systems in which it is integrated.
• Quality Signal Integrity: With its excellent signal integrity, the HD3SS3412ARUAR ensures reliable data transmission, which is critical for high-speed communication.

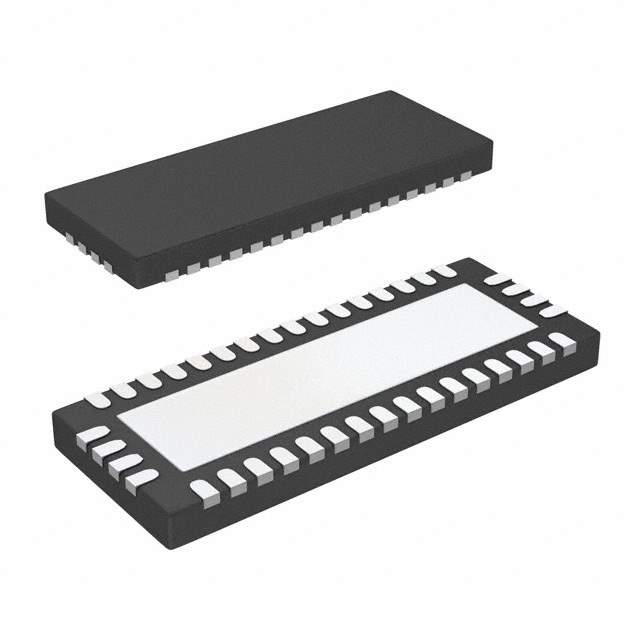

• Small Form Factor: Housed in a compact 42-pin QFN package, the device saves valuable board space and is suitable for space-constrained applications.

Applications

The HD3SS3412ARUAR is highly suited for a wide range of applications, including:

• Desktop and Laptop Computers
• Tablets and Smartphones
• Docking Stations
• USB Peripherals and Accessories
• Monitors and Display Interfaces

Technical Specifications

Below are some of the technical specifications of the HD3SS3412ARUAR:

• Supply Voltage (V_CC): 3.3V ±10%
• Operating Temperature Range: -40°C to 85°C
• Package: 42-Pin QFN (RU-42)

The Texas Instruments HD3SS3412ARUAR represents a blend of performance, efficiency, and versatility, making it an excellent choice for designers and engineers looking to enhance USB connectivity in their next-generation electronic products.
