Introducing the TS5USBC400YFPR USB 2.0 High-Speed Switch from Texas Instruments

The TS5USBC400YFPR is a cutting-edge USB 2.0 high-speed (480 Mbps) switch with a dual SPDT configuration, designed and manufactured by the renowned semiconductor company, Texas Instruments. This versatile switch is specifically engineered to provide seamless switching between two USB sources or destinations, making it an ideal solution for a variety of USB sharing applications.

With its impressive data transfer capabilities, the TS5USBC400YFPR is optimized for USB 2.0 signal switching, which is essential for modern devices that require high-speed data transmission. The switch is also backward-compatible with full-speed (12 Mbps) and low-speed (1.5 Mbps) USB signals, ensuring broad compatibility with various USB-enabled devices and peripherals.

The device boasts a low on-state resistance (RON) of typically 4.5 ohms, which minimizes signal attenuation and ensures the integrity of data transmission. Additionally, it features a low-power consumption design, with an operating voltage range of 2.3V to 4.3V, making it suitable for battery-powered equipment and energy-efficient applications.

One of the key benefits of the TS5USBC400YFPR is its support for hot-plug detection and automatic switching. The switch can automatically detect the insertion or removal of a USB plug and switch accordingly without user intervention, providing a user-friendly experience. This feature is particularly useful for devices such as smartphones, tablets, and laptops, where USB ports are frequently used for charging and data transfer.

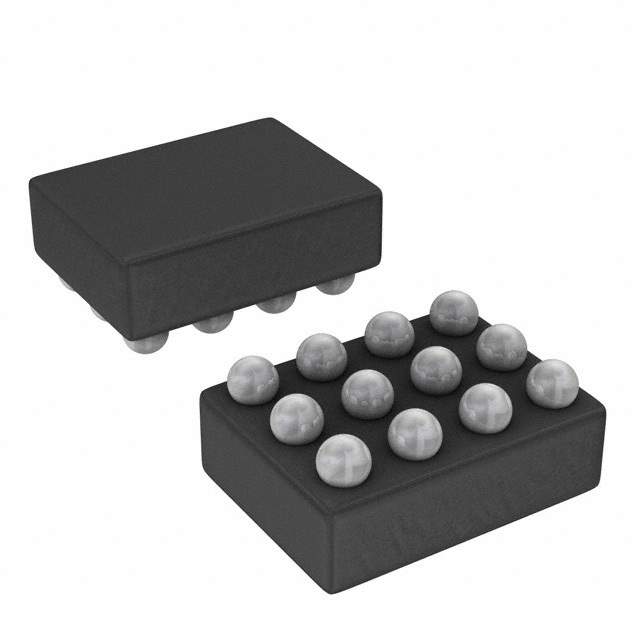

The TS5USBC400YFPR is housed in a compact YFQFN package with a body size of 2.00 mm x 2.00 mm, making it suitable for space-constrained applications. Its small footprint allows for integration into a wide range of electronic devices without significantly impacting the overall design.

Overall, the TS5USBC400YFPR from Texas Instruments represents a robust and reliable solution for USB signal switching. Its high-speed performance, low-power operation, and automatic switching capabilities make it an excellent choice for designers and engineers looking to enhance the connectivity and functionality of their USB-enabled devices.
