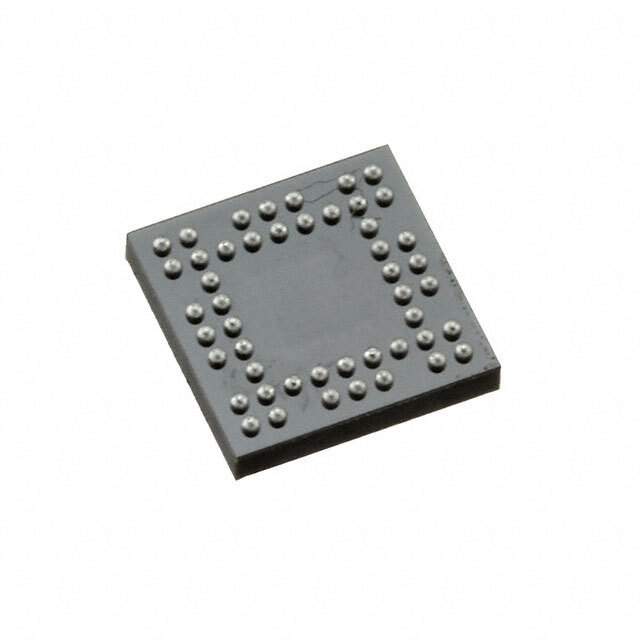

The HD3SS212ZQER from Texas Instruments is a high-performance, bidirectional passive switch in a compact QFN package designed for USB 3.1 Gen 1 and Gen 2 data rate switching. This versatile switch is an essential component for applications requiring high-speed data transfer capabilities such as laptops, docking stations, and other computer peripherals.

Key Features

• USB 3.1 Gen 1 and Gen 2 Support: The HD3SS212ZQER is optimized for USB 3.1 Gen 1 (5 Gbps) and Gen 2 (10 Gbps) data rates, ensuring compatibility with the latest USB standards for fast data transfer.
• High-Speed Switching: This switch can handle high-speed differential signaling with minimal signal degradation, providing a reliable connection for high-speed data applications.
• Low Power Consumption: Designed with power efficiency in mind, the HD3SS212ZQER consumes minimal power, making it ideal for battery-powered devices.
• Compact QFN Package: The small form factor of the QFN package allows for integration into space-constrained designs without sacrificing performance.

Applications

• USB 3.1 Gen 1 and Gen 2 Switching
• High-Speed Data Bus Multiplexing
• Desktop and Laptop Computers
• Docking Stations
• Computer Peripherals

The HD3SS212ZQER is designed to switch two differential channels between two sources, which can be particularly useful for devices that need to alternate between USB 3.1 data paths. The switch's bidirectional capability ensures seamless data flow regardless of the direction, which is critical for maintaining the integrity and speed of data transfer.

With its high-speed performance, low power consumption, and compact packaging, the HD3SS212ZQER by Texas Instruments stands out as a superior choice for designers looking to implement USB 3.1 Gen 1 and Gen 2 interfaces in their products. Its reliability and efficiency make it an invaluable component for a wide range of electronic devices that require fast and consistent data communication capabilities.
