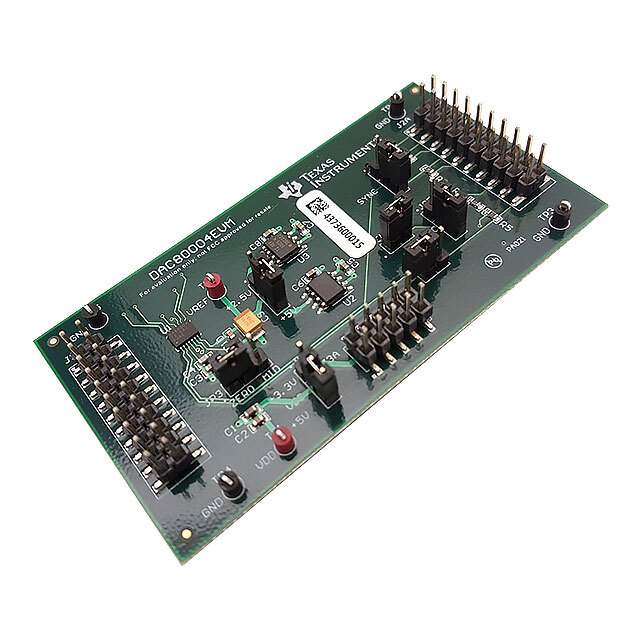

DAC80004EVM

Part No DAC80004EVM
Manufacturer Texas Instruments
Catalog Evaluation Boards - Digital to Analog Converters (DACs)
Description EVAL BOARD FOR DAC80004 / DAC80004 16 Bit Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Digital to Analog Converters (DACs)
Mfr Texas Instruments
Package Bulk
Number of DAC's 1
Number of Bits 16
Data Interface SPI
Settling Time 5.8 µs
DAC Type Voltage
Supplied Contents Board(s)
Utilized IC / Part DAC80004
Base Product Number DAC80004
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 296-44555
Standard Package 1
Win Source Part Number 1050944-DAC80004EVM
Ultra Librarian 3D Model Ultra Librarian DAC80004EVM CAD Model

Description

The DAC80004EVM from Texas Instruments is a state-of-the-art evaluation module designed to showcase the performance and capabilities of the DAC80004, a high-precision, quad-channel, 16-bit digital-to-analog converter (DAC). This evaluation module is an essential tool for engineers and designers to test and analyze the DAC80004's features in a variety of applications, including industrial automation, telecommunications, and data acquisition systems.

Key Features and Benefits

  • High Resolution: The DAC80004 offers a 16-bit resolution, ensuring high precision and accuracy in analog signal generation.
  • Quad-Channel Output: With four independent DAC channels, users can output multiple analog signals simultaneously, making it ideal for complex systems that require multi-channel control.
  • Flexible Reference Voltage: The DAC80004EVM allows for both internal and external reference voltages, giving the user the flexibility to set the desired full-scale output voltage.
  • Low Power Consumption: The DAC80004 is designed for low power operation, making it suitable for battery-powered devices and power-sensitive applications.
  • Easy-to-Use Software: The evaluation module comes with an intuitive software interface that simplifies configuration and testing, providing a user-friendly experience.

Design and Connectivity

The DAC80004EVM features a compact and robust design, with easy access to all necessary connectors and test points. It includes a USB interface for communication with a host computer, enabling users to quickly set up the evaluation module and start testing without the need for complex wiring or additional hardware.

Applications

The DAC80004EVM is well-suited for a variety of applications, including:

  • Process Control and Automation
  • Data Acquisition Systems
  • Telecommunications Infrastructure
  • Portable and Battery-Powered Instruments
  • Analog Output Modules

Overall, the DAC80004EVM from Texas Instruments provides engineers with a powerful tool for evaluating the DAC80004 DAC, facilitating rapid development and testing to accelerate time-to-market for their products.
