Products specifications Report Issue?

Categories Development Boards
Estimated Pruduction Lead Time 3 Weeks
Features DAC38J84 16 Bit 2.5G Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
Manufacturer Texas Instruments
Package Box
Family Name DAC38
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Part Number 296-43437, 296-43437-ND, 296-DAC38J84EVM, DAC38J84EVM-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916720-DAC38J84EVM
Ultra Librarian 3D Model Ultra Librarian DAC38J84EVM CAD Model

Description

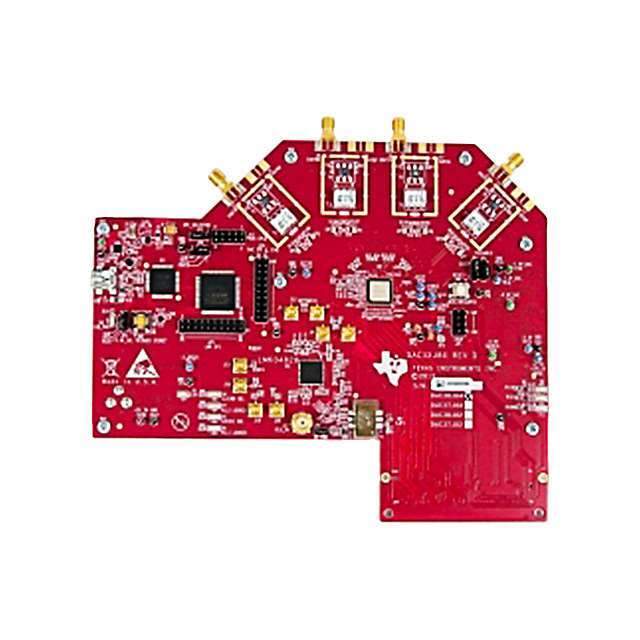

The DAC38J84EVM is a state-of-the-art evaluation module designed by Texas Instruments to showcase the capabilities of the DAC38J84, a high-performance, low-power, octal, 16-bit digital-to-analog converter (DAC). This evaluation module is an essential tool for designers and engineers to test the functionalities and features of the DAC38J84 in a user-friendly environment before integrating it into their systems.

Key Features

  • High-Speed Performance: The DAC38J84 operates at a maximum sample rate of 2.5 GSPS, enabling high-speed data conversion for demanding applications.
  • Octal Channel Configuration: With eight DAC channels, this device can handle multiple signal outputs simultaneously, making it ideal for complex systems.
  • Low Power Consumption: The DAC38J84 is designed for power efficiency, which is critical for portable and battery-powered applications.
  • Advanced Modulation Support: The device supports advanced modulation schemes, including QAM and OFDM, which are essential for communications and signal processing applications.
  • Integrated Interpolation Filters: Built-in interpolation filters reduce the need for external components, simplifying the design and reducing the overall system cost.

Applications

The DAC38J84EVM is suitable for a wide range of applications, including:

  • Wireless Communications Infrastructure
  • Test and Measurement Equipment
  • High-speed Data Acquisition Systems
  • Medical Imaging
  • Defense and Aerospace Electronics

Ease of Use

The DAC38J84EVM comes with an easy-to-use graphical user interface (GUI) that allows users to configure the DAC38J84 quickly and monitor its performance in real-time. The module connects to a host computer via USB, facilitating the transfer of complex data patterns and control signals.

Support and Resources

Texas Instruments provides comprehensive support for the DAC38J84EVM, including detailed documentation, reference designs, and technical support from TI's expert engineers. This ensures that users can maximize the capabilities of the evaluation module and accelerate the development of their applications.
