Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Channels per IC 1 - Single
Amplifier Type Isolation
Output Type Differential
-3db Bandwidth 100kHz
Output Current per Channel 20mA
Operating Temperature Range -40°C ~ 105°C
Current - Supply (Main IC) 5.4mA
Dual Supply Voltage (±) 2.7 V ~ 5.5 V
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part AMC1100
Win Source Part Number 768496-AMC1100EVM
Popularity Medium
Supply and Demand Status Limited
Family Name AMC1100
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AMC1100EVM CAD Model

Description

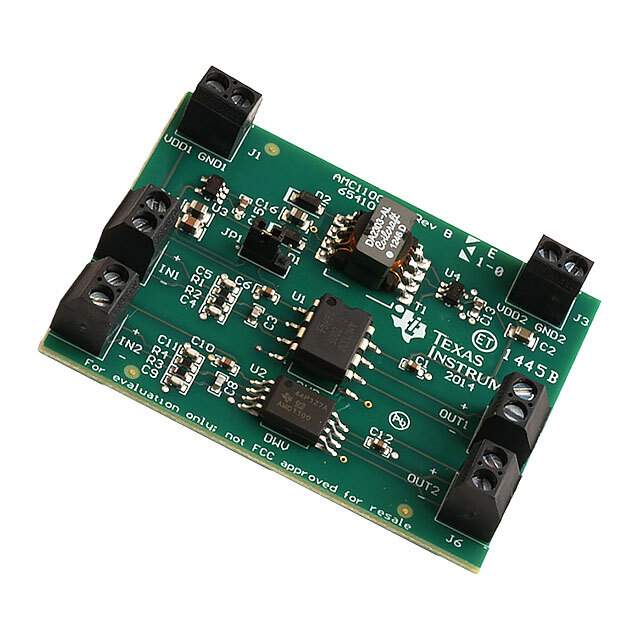

The AMC1100EVM is a compact, feature-rich evaluation module designed by Texas Instruments to facilitate the testing and performance analysis of the AMC1100, a precision isolation amplifier. This specialized evaluation module is an essential tool for engineers and designers who require high-accuracy signal isolation in their applications, such as industrial motor drives, green energy systems, and power monitoring circuits.

The AMC1100 is a fully-differential isolation amplifier with a high-voltage input, designed to provide precise electrical isolation. It employs an innovative silicon dioxide (SiO2) barrier to achieve high insulation ratings, ensuring signal integrity and safety in high-voltage environments. The device features a low nonlinearity of 0.03%, a low offset voltage, and a noise-reduction design, making it ideal for accurate and reliable data acquisition.

The AMC1100EVM comes equipped with a variety of test points and onboard features that enable comprehensive evaluation of the AMC1100's capabilities. The module includes configurations for different input ranges and allows for easy connection to a variety of signal sources. With its onboard reference and power supply circuits, the EVM simplifies the process of device testing, allowing for immediate plug-and-play functionality.

Furthermore, the evaluation module is compatible with standard breadboard and prototyping equipment, making it a versatile addition to any development lab. The AMC1100EVM also includes detailed documentation, providing users with application notes, setup guidelines, and example circuits to accelerate the development process and ensure a smooth integration into target applications.

With its robust design and comprehensive feature set, the AMC1100EVM is an indispensable tool for engineers looking to leverage the high-performance characteristics of the AMC1100 isolation amplifier in their designs. Texas Instruments' commitment to quality and innovation is evident in this evaluation module, making it a reliable and efficient solution for advancing isolated signal processing technology.
