Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel
Status Obsolete
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Voltage - Supply (Minimum) 3V
Voltage - Supply (Maximum) 5.5V
Voltage - Output 4.75V ~ 5.25V
Current - Output / Channel 400mA (Flash)
Frequency 725kHz
Dimming PWM
Applications Camera Flash
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD

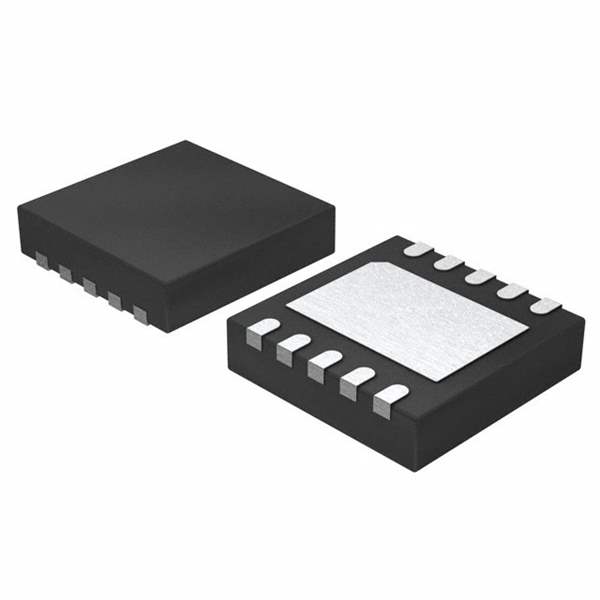

Manufacturer Package 10-WFDFN Exposed Pad
Supplier Device Package 10-WSON (3x3)
Family Part Number LM2753
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1197984-LM2753SD
Manufacturer Homepage www.national.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM2753SD CAD Model

Description

The LM2753SD from Texas Instruments is a versatile and efficient LED driver IC designed to provide a high-quality lighting solution for a variety of applications. This compact, switch-mode regulated charge pump offers an ideal power source for driving white LEDs used in camera flash, backlighting in portable devices, and other lighting applications.

This device is capable of driving up to four LEDs with a total output current of 120mA. The LM2753SD operates over a wide input voltage range of 2.7V to 5.5V, making it suitable for battery-powered applications. It comes with an adjustable output voltage that allows for optimal efficiency and ensures the consistent brightness of LEDs regardless of battery voltage fluctuations.

One of the key features of the LM2753SD is its small footprint. Housed in a compact 10-pin WSON package, it is an excellent choice for space-constrained applications. The IC also includes an integrated 1x/1.5x mode charge pump that minimizes power loss and maximizes efficiency.

The LM2753SD offers a flexible and programmable lighting solution with its two independently controlled LED current sinks. This allows for fine-tuning of brightness levels and can be easily configured via an I2C-compatible interface. Additionally, the IC includes safety features such as overvoltage protection, thermal shutdown, and LED open/short circuit protection, ensuring reliability and longevity of the application.

With its high-efficiency operation, programmable current sinks, and robust protection features, the LM2753SD from Texas Instruments stands out as a top-tier choice for designers looking to enhance their lighting systems. Whether it's for smartphone camera flashes, handheld devices, or other portable electronics, the LM2753SD provides a dependable and adaptable solution for high-intensity LED driving requirements.
