Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Channels per IC 1 - Single
Amplifier Type Instrumentation
Output Type Rail-to-Rail
SR - Slew Rate 1 V/μs
-3db Bandwidth 1MHz
Output Current per Channel 16mA
Operating Temperature Range -40°C ~ 125°C
Current - Supply (Main IC) 200μA
Dual Supply Voltage (±) 5V, ±15V
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part INA826
Win Source Part Number 776804-INA826EVM
Popularity Medium
Supply and Demand Status Limited
Family Name INA826
Introduction Date September 06, 2011
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian INA826EVM CAD Model

Description

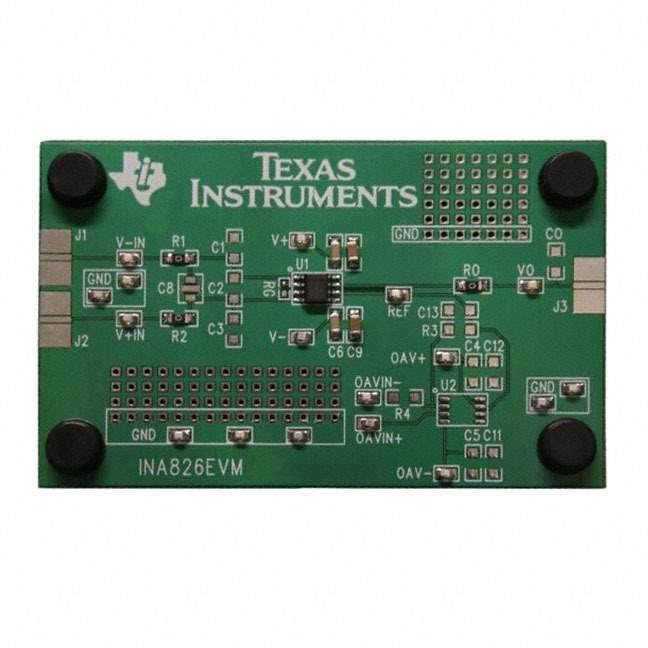

The INA826EVM is an evaluation module designed to demonstrate the capabilities of the INA826 precision instrumentation amplifier from Texas Instruments. This high-accuracy amplifier is suitable for a wide range of applications, including medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features

  • Versatile Configuration: The INA826EVM allows users to configure the gain settings easily, offering flexibility for various application requirements. With the onboard gain-set resistor options, users can quickly evaluate the amplifier's performance across different gain configurations.
  • Easy to Use: The evaluation module is designed for simplicity, making it easy for both novice and experienced engineers to analyze the INA826's features. The module comes with all necessary components, eliminating the need for additional hardware setup.
  • High Precision: The INA826 amplifier is known for its low offset voltage and low noise, ensuring high-precision measurements. This makes the EVM ideal for testing the INA826 in sensitive applications where accuracy is paramount.
  • Wide Supply Range: The INA826EVM operates over a wide supply range, accommodating various power supply levels and making it suitable for battery-powered and portable applications.

Applications

  • Medical Devices
  • Industrial Process Control
  • Precision Data Acquisition
  • Battery-Powered Instruments
  • Automotive Sensor Signal Conditioning

The INA826EVM is an essential tool for engineers looking to test and implement the INA826 instrumentation amplifier in their designs. With its ease of use, versatility, and precision, the EVM provides a comprehensive platform for evaluating the performance and robustness of this Texas Instruments component.

For detailed information, technical specifications, and support resources, please visit the Texas Instruments official website or contact their customer support team.
