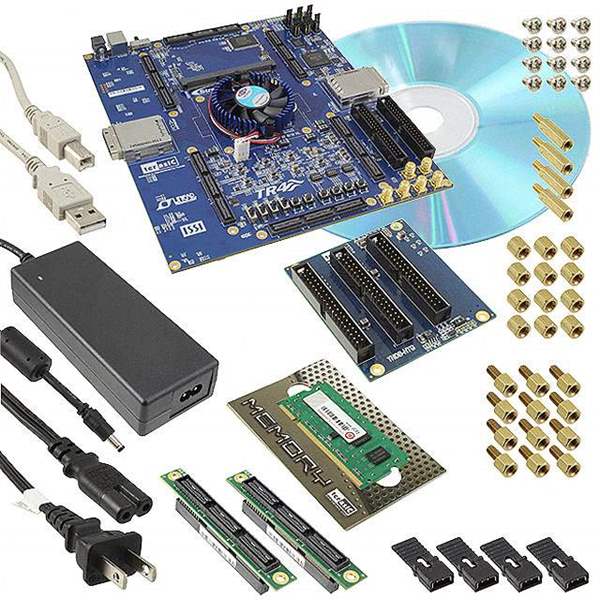

P0107 Terasic Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Mfr Terasic Inc.
Series Stratix® IV GX
Package Box
Product Status Active
Type FPGA
For Use With/Related Products EP4SGX230
Platform Stratix IV GX FPGA TR4-230
Contents Board(s), Cable(s), Power Supply, Accessories
Interconnect System HSMC
Suggested Programming Environment Quartus II
Utilized IC / Part EP4SGX230
Base Product Number EP4SGX230
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8471.50.0150
Win Source Part Number 265116-P0107
Ultra Librarian 3D Model Ultra Librarian P0107 CAD Model

Description

The 265116-P0107 is an evaluation board for Stratix IV GX FPGA manufactured by Terasic Inc.

  • Series: Stratix IV GX
  • Type: FPGA
  • Package: Box
  • Accessories: Cables, power supply, and more
  • Designed for use with: EP4SGX230 IC/part
  • Compatible with: Stratix IV GX FPGA TR4-230 platform
  • ECCN: 3A001A7A
  • HTSUS Code: 8471.50.0150
