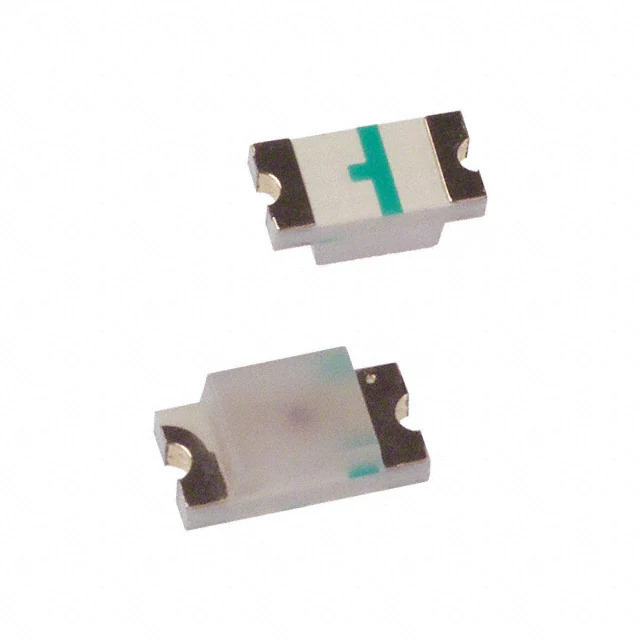

HSME-C150 Broadcom Limited
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Series -
Package Tape & Reel
Product Status Active
Color Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 50mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 170°
Mounting Type Surface Mount
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Features -
Package / Case 1206 (3216 Metric)
Supplier Device Package Chip LED
Size / Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number HSME-C150
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1372063-HSME-C150
Ultra Librarian 3D Model Ultra Librarian HSME-C150 CAD Model

Description

The Broadcom Limited 1192478 is a chip LED from the HSME-C150 series.

  • Package: 1206 (3216 metric)
  • Configuration: Chip LED
  • Mounting Type: Surface Mount
  • Color: Green
  • Lens Transparency: Diffused
  • Viewing Angle: 170°
  • Forward Voltage: 2.1V
  • Forward Current: 20mA
  • Millicandela Rating: 50mcd
