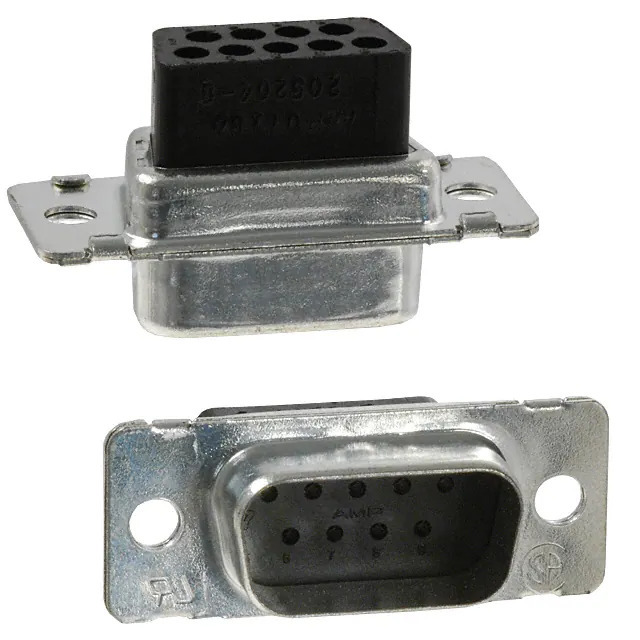

205204-8 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features -
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness -
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 205204
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363718-205204-8
Ultra Librarian 3D Model Ultra Librarian 205204-8 CAD Model

Description

The TE Connectivity AMP Connectors 205204 is a D-Sub connector housing from the AMPLIMITE HDP-20 series.

  • Mounting: Free Hanging (In-Line)
  • Contact Gender: Plug Male
  • Color: Black
  • Number of Rows: Two
  • Number of Positions: 9
  • Material: Polyamide (PA) and Nylon, Glass-Filled
  • D-Sub Style: Yes
  • Shell Size/Layout: 1 (DE, E)
  • Shell Material: Steel
  • Shell Plating: Tin-Plated
  • Product Status: Active
  • HTSUS Code: 8538.90.8180
  • ECCN: EAR99
