865615PLTXLF Amphenol
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr Amphenol ICC (FCI)
Series 8656
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Type Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin/Zinc Plated
Shell Finish Thickness -
Ingress Protection -
Temperature Range - Operating -55°C ~ 125°C
Mating Cycles 200
Dielectric Material Thermoplastic
Color -
Note Contacts Not Included
Base Product Number 865615
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1365122-865615PLTXLF
Ultra Librarian 3D Model Ultra Librarian 865615PLTXLF CAD Model

Description

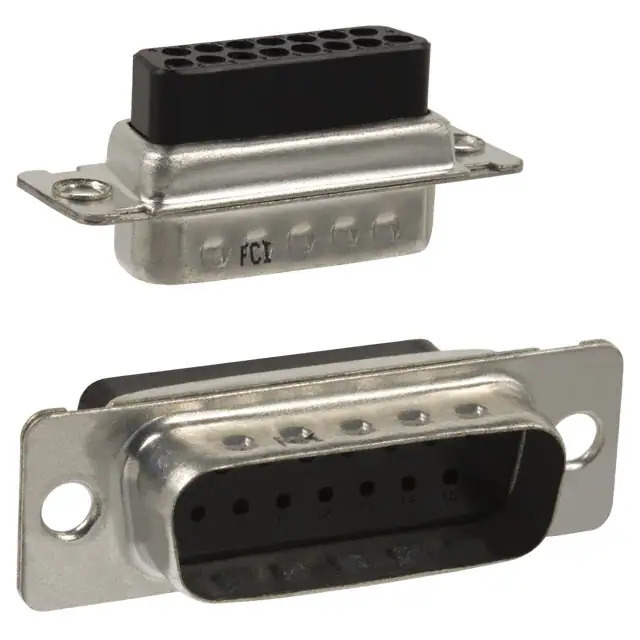

The 1365122-865615PLTXLF is a D-Sub, D-Shaped Connector Housing from Amphenol ICC (FCI).

  • Contact Type: Plug for male contacts
  • Positions: 15
  • Rows: 2
  • Contact Type: Signal
  • Mounting Type: Panel Mount
  • Shell Size/Connector Layout: 2 (DA, A)
  • Shell Material: Steel with a tin/zinc plated finish
  • Housing Material: Thermoplastic
  • Grounding Feature: Grounding Indents
  • Mating Cycle: 200
  • Operating Temperature: -55°C to 125°C
