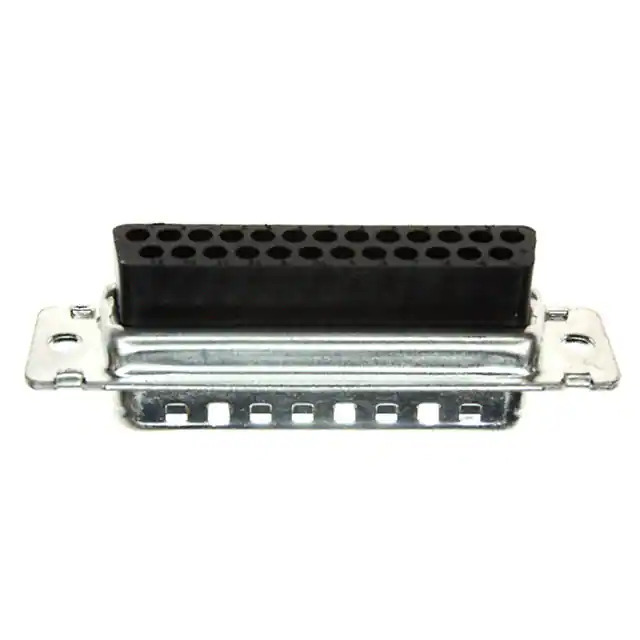

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness -
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 207464
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363775-207464-2
Ultra Librarian 3D Model Ultra Librarian 207464-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 is a D-Sub connector housing designed for use in connectors and interconnects.

  • Color: Black
  • Gender: Plug, Male Contacts
  • Number of Positions: 25
  • Number of Rows: 2
  • Mounting Type: Free Hanging (In-Line)
  • Shell Material: Steel, Tin Plated
  • Housing Material: Polyamide (PA), Nylon, Glass Filled
  • Connector Style: D-Sub
  • Shell Size: 3 (DB, B)
  • Series: AMPLIMITE HDP-20
  • Manufacturer: TE Connectivity AMP Connectors
  • Product Status: Active
