2129276-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr TE Connectivity AMP Connectors
Series CHAMP .024
Package Tray
Product Status Active
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 40
Number of Rows 2
Mounting Type Surface Mount, Through Hole
Termination Solder
Flange Feature -
Type -
Features Latch Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 2129276
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365190-2129276-1
Ultra Librarian 3D Model Ultra Librarian 2129276-1 CAD Model

Description

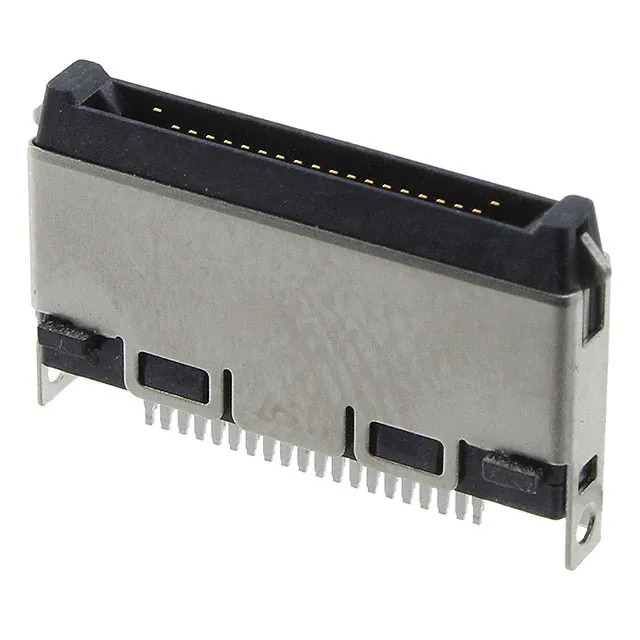

The CHAMP .024 series is a plug connector from TE Connectivity AMP Connectors.

  • Number of Positions: 40
  • Number of Rows: 2
  • Lock Type: Latch Lock
  • Shielded: Yes
  • Mounting Style: Surface Mount and Through Hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Category: D-Sub, D-Shaped Connectors - Centronics Connectors
  • MSL Level: 1 (unlimited)
  • Package: Tray
  • Termination Compatibility: Solder
