Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-22
Package Bulk
Product Status Active
Connector Style D-Sub, High Density
Connector Type Plug for Male Contacts
Number of Positions 44
Number of Rows 3
Shell Size, Connector Layout 3 (DB, B) High Density
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 1658672
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1365212-1658672-1
Ultra Librarian 3D Model Ultra Librarian 1658672-1 CAD Model

Description

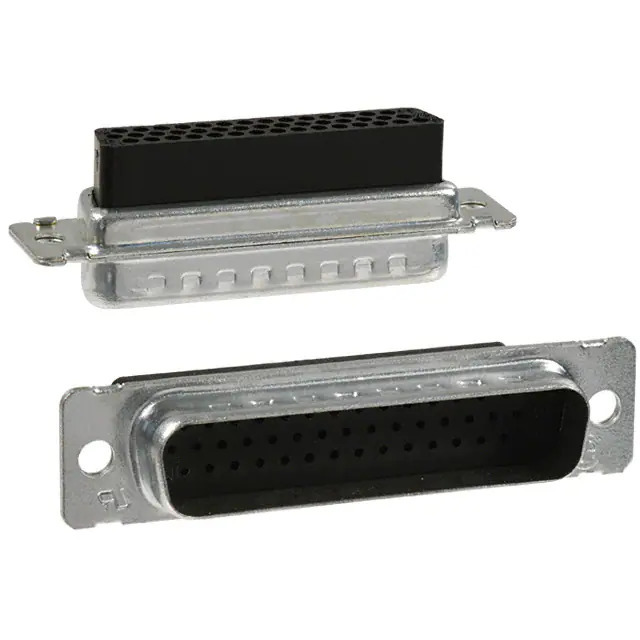

The 1365212-1658672-1 is a D-Sub connector housing from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HDP-22
  • Connector Type: Plug for male contacts
  • Number of Positions: 44
  • Number of Rows: 3
  • Mounting Type: Free Hanging (In-Line)
  • Color: Black
  • Features: Grounding Indents
  • Material: Polyamide (PA), Nylon, Glass-Filled
  • Temperature Range: Not Specified
  • HTSUS Code: 8538.90.8180
  • ECCN: EAR99
  • Base Product Number: 1658672
  • Product Status: Active
  • Packaging: Bulk
