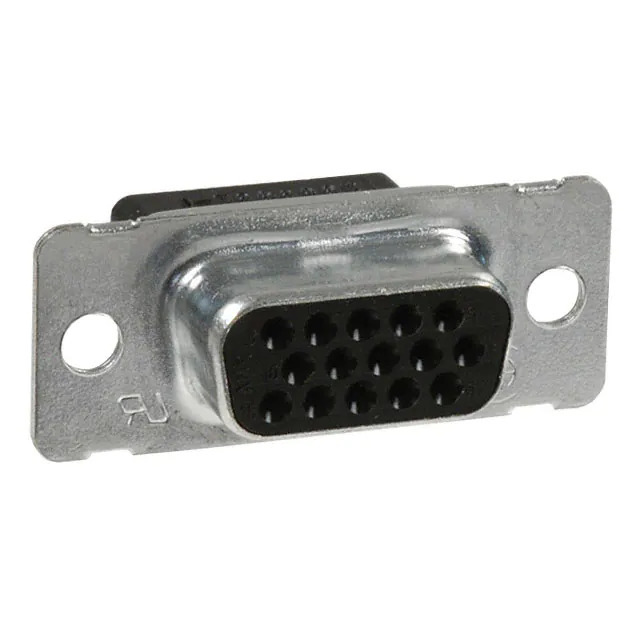

1658681-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1658681-1

Part No 1658681-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HD HOUSING RCPT 15POS / Receptacle for Female Contacts Housing D-Sub, High Density Connector 15 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-22
Package Bulk
Product Status Active
Connector Style D-Sub, High Density
Connector Type Receptacle for Female Contacts
Number of Positions 15
Number of Rows 3
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features -
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 1658681
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1365199-1658681-1
Ultra Librarian 3D Model Ultra Librarian 1658681-1 CAD Model

Description

The AMPLIMITE HDP-22 series is a receptacle connector for female contacts from TE Connectivity AMP Connectors.

  • Number of Positions: 15
  • Number of Rows: 3
  • Mounting Type: Free Hanging (in-line)
  • Color: Black
  • Category: D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
  • MSL Level: 1 (unlimited)
  • Package: Bulk
  • REACH Compliant: Unaffected
  • Material: Polyamide (PA), Nylon, Glass Filled
  • Shell Material: Steel with a Tin Plated Finish
