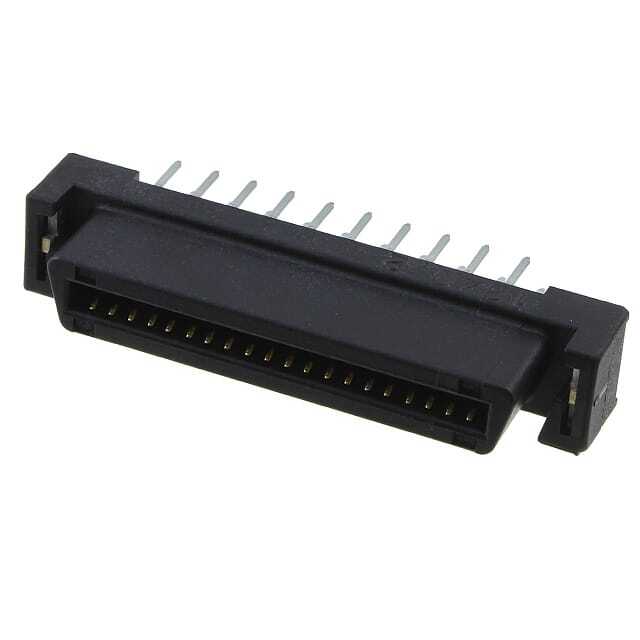

5175475-5
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr TE Connectivity
Series CHAMP .050 I
Package Tray
Product Status Active
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 40
Number of Rows 2
Mounting Type Through Hole
Termination Solder
Type Board to Board, High Density
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number 5175475
Standard Package 130 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 907176-5175475-5
Ultra Librarian 3D Model Ultra Librarian 5175475-5 CAD Model

Description

The CHAMP .050 I Centronics Connectors are high-density board-to-board connectors designed for reliable and secure connections.

  • Series: TE Connectivity
  • Positions: 40-position receptacle
  • Features: Board lock
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Termination: Solder
  • Package: Tray
  • Contacts: Outer shroud contacts
  • Rows: Two rows
  • Quantity per Package: 130 pieces
  • MSL Level: 1 certified
  • REACH Status: Vendor undefined
  • Manufacturer: TE Connectivity
  • Base Product Number: 5175475
