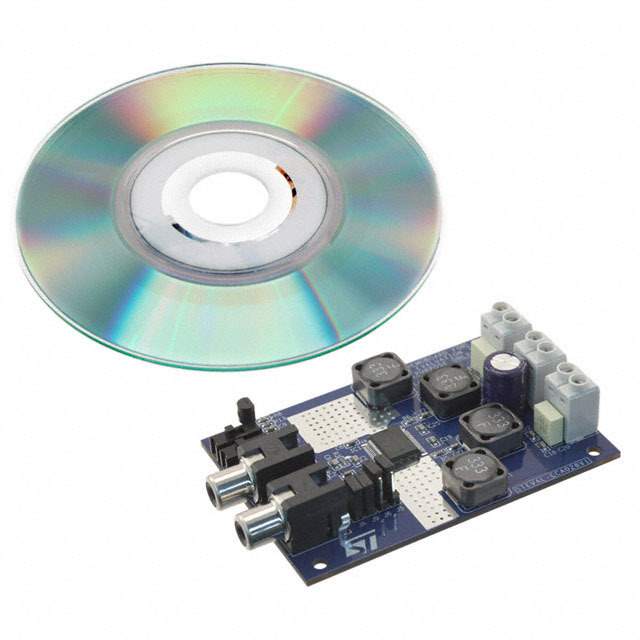

The STEVAL-CCA028V1 from STMicroelectronics is a state-of-the-art audio digital-to-analog converter (DAC) evaluation board designed for audiophiles, audio engineers, and enthusiasts who demand the highest sound quality in their audio systems. This evaluation board is built around the advanced CS4344 24-bit, 192 kHz Stereo DAC from Cirrus Logic, which provides exceptional sound quality and performance.

Key Features

• High-Quality Audio Performance: With a dynamic range of 105 dB and THD+N of -90 dB, the STEVAL-CCA028V1 delivers a pristine audio output that can satisfy the requirements of high-fidelity audio systems.
• Support for Multiple Formats: The board is capable of handling a wide range of audio formats, supporting sample rates up to 192 kHz, making it versatile for use with various digital audio sources.
• Flexible Connectivity: It includes a variety of digital input interfaces, including I²S and S/PDIF, allowing for easy integration with other digital audio equipment.
• Easy to Use: The evaluation board comes with a user-friendly interface and onboard connectors that simplify the setup process, enabling quick testing and prototyping.
• Compact Design: With its small form factor, the STEVAL-CCA028V1 can be easily incorporated into existing audio systems without the need for significant modifications.

Applications

The STEVAL-CCA028V1 is ideal for a range of applications that require high-quality audio conversion, including:

• High-end audio and home theater systems
• Professional audio recording and playback equipment
• Multimedia and gaming systems
• Audio test and measurement setups

Technical Specifications

The technical specifications of the STEVAL-CCA028V1 provide insight into its capabilities:

• Resolution: 24-bit
• Sampling Rate: Up to 192 kHz
• Dynamic Range: 105 dB
• THD+N: -90 dB
• Power Supply: Single 3.3V

Overall, the STEVAL-CCA028V1 evaluation board is an excellent tool for developers and audiophiles looking to explore the capabilities of high-definition audio DACs and to create systems that deliver exceptional sound quality.
