The TAS5142DDV6EVM2 from Texas Instruments is a comprehensive evaluation module designed to demonstrate the capabilities and performance of the TAS5142, a high-efficiency, digital audio power amplifier. This evaluation module (EVM) provides an excellent platform for engineers and audio enthusiasts to explore the features and audio quality of the TAS5142 in a practical, user-friendly environment.

Key Features of TAS5142DDV6EVM2

• High-Quality Audio Performance: The TAS5142 is a PurePath Digital™ amplifier capable of delivering high-quality, high-fidelity audio with minimal distortion and noise.
• Power Efficiency: The TAS5142 operates with high efficiency, which reduces heat dissipation and eliminates the need for bulky heatsinks, making it ideal for compact audio applications.
• Flexibility: The EVM supports various configurations, allowing users to evaluate the TAS5142 in stereo or mono modes, and it can be interfaced with a variety of digital audio sources and processors.
• Protection Features: Built-in overcurrent, undervoltage, overtemperature, and DC detection safeguards the amplifier and speakers from potential damage.
• Easy-to-Use: The TAS5142DDV6EVM2 is designed for ease of use, with clear labeling and test points, simplifying the process of evaluating the amplifier's performance.

Applications

The TAS5142DDV6EVM2 is suitable for a wide range of applications, including:

• Home theater systems
• Professional audio equipment
• Active speakers
• Mini and micro component systems

Technical Specifications

The TAS5142 amplifier can deliver up to 100W per channel into a 6-ohm load, with a total harmonic distortion plus noise (THD+N) of less than 0.1%. The EVM operates over a supply voltage range of 10V to 26V, making it versatile for use in various power environments.

Package Contents

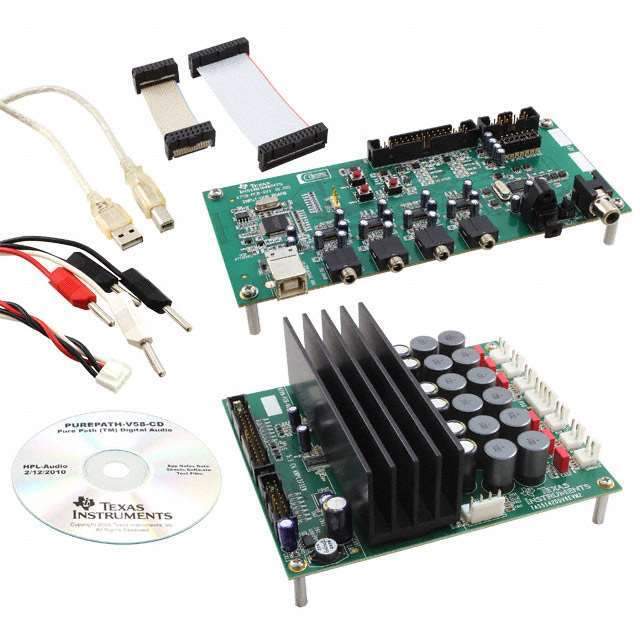

The TAS5142DDV6EVM2 package includes the evaluation module, a user guide, and technical documentation to assist users in getting started quickly and efficiently.

Overall, the TAS5142DDV6EVM2 is an essential tool for those looking to harness the power and clarity of Texas Instruments' digital audio technology in their audio projects or products.
