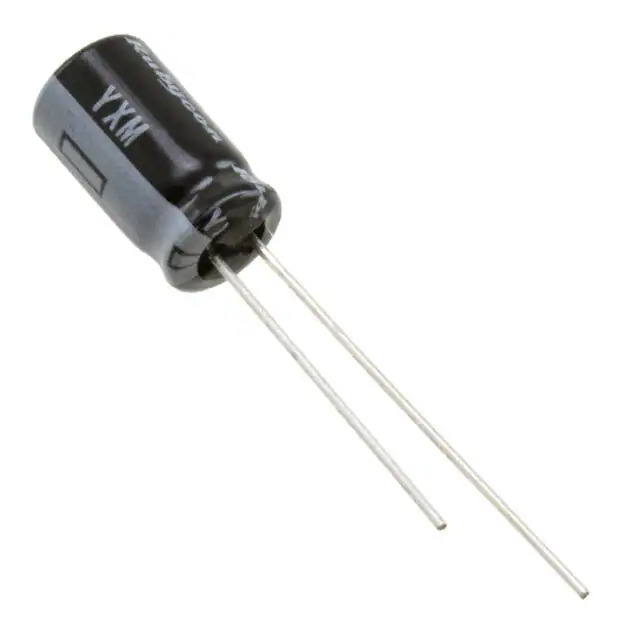

Same model may have multiple batches, images only for reference.
50YXM22MEFR5X11 Rubycon
Same model may have multiple batches, images only for reference.

50YXM22MEFR5X11

Part No 50YXM22MEFR5X11
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V RADIAL / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 74.25 mA @ 120 Hz
Ripple Current @ High Frequency 135 mA @ 100 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357597-50YXM22MEFR5X11
Ultra Librarian 3D Model Ultra Librarian 50YXM22MEFR5X11 CAD Model

Description

The 50YXM22MEFR5X11 is a 22μF, 50V aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 22μF
  • Voltage: 50V
  • Series: YXM
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Capacitance Tolerance: ±20%
  • Ripple Current (Low Frequency): 74.25 mA @ 120 Hz
  • Ripple Current (High Frequency): 135 mA @ 100 kHz
  • Diameter: 0.197" (5.00mm)
  • Height: 0.492" (12.50mm)
  • Mounting Type: Through-Hole
  • Lifetime: 10,000 Hours @ 105°C
  • Polarization: Polarized
  • Package: Radial, Can
  • Product Status: Active
