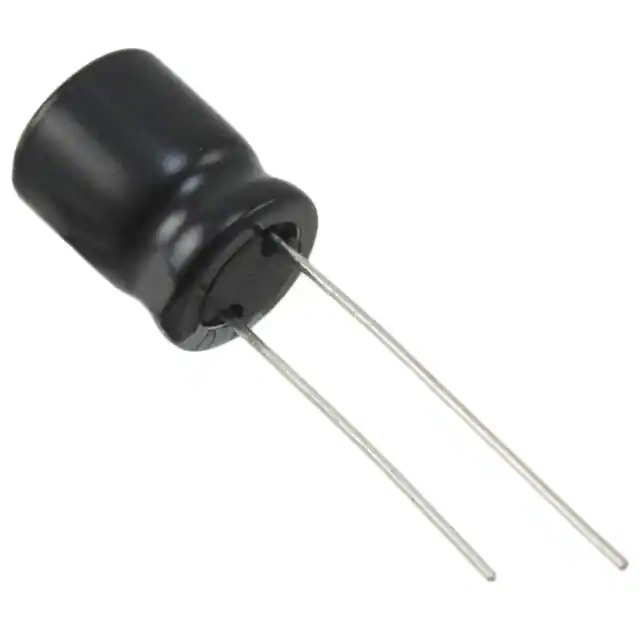

UHE1V182MHD6 Nichicon
Same model may have multiple batches, images only for reference.

UHE1V182MHD6

Part No UHE1V182MHD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1800UF 20% 35V RADIAL / 1800 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHE1V182MHD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 1800 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.344 A @ 120 Hz
Ripple Current @ High Frequency 2.93 A @ 100 kHz
Impedance 21 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358011-UHE1V182MHD6
Ultra Librarian 3D Model Ultra Librarian UHE1V182MHD6 CAD Model

Description

The UHE1V182MHD6 is a high-capacitance aluminum electrolytic capacitor designed for general-purpose applications from Nichicon.

  • Capacitance: 1800 µF
  • Voltage Rating: 35 V
  • Package: Radial, Can
  • Tolerance: ±20%
  • Ripple Current (Low Freq): 2.344 A @ 120 Hz
  • Ripple Current (High Freq): 2.93 A @ 100 kHz
  • Lead Spacing: 0.295" (7.50mm)
  • Size: 0.630" Dia (16.00mm)
  • Mounting Type: Through-Hole
  • Lifetime: 10000 hours @ 105°C
  • REACH: Unaffected
