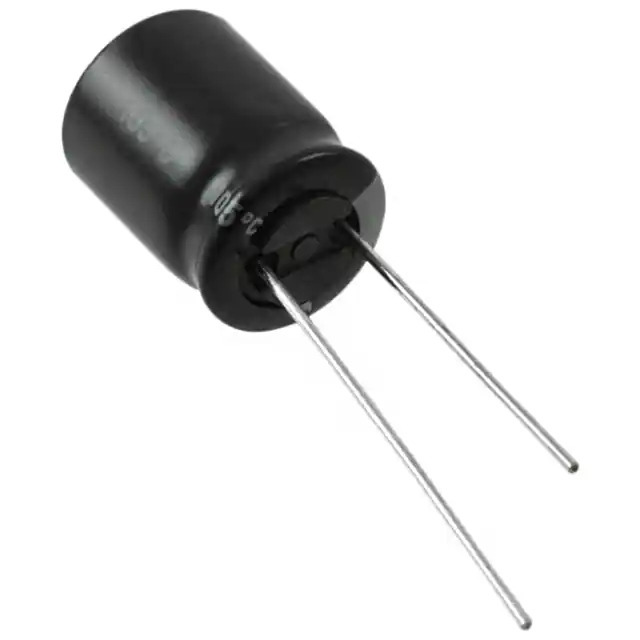

Same model may have multiple batches, images only for reference.
35ZL560MEFC10X23 Rubycon
Same model may have multiple batches, images only for reference.

35ZL560MEFC10X23

Part No 35ZL560MEFC10X23
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 35V RADIAL / 560 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZL
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.183 A @ 120 Hz
Ripple Current @ High Frequency 2.15 A @ 100 kHz
Impedance 22 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358087-35ZL560MEFC10X23
Ultra Librarian 3D Model Ultra Librarian 35ZL560MEFC10X23 CAD Model

Description

The Rubycon 1358087-35ZL560MEFC10X23 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Application: General Purpose
  • Capacitance: 560 μF
  • Voltage Rating: 35 V
  • Operating Temperature: -40°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.394" Dia (10.00mm)
  • Lifetime: 4000 hours @ 105°C
  • Ripple Current (Low Frequency): 1.183 A @ 120 Hz
  • Ripple Current (High Frequency): 2.15 A @ 100 kHz
  • Series: ZL
  • Product Status: Active
