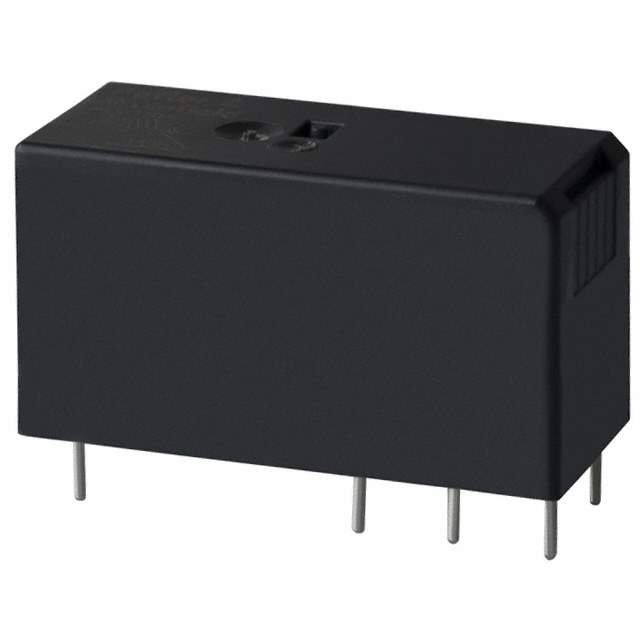

RTD14005F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RT1
Package Box
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 80.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 62 Ohms
Base Product Number RTD14
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 2-1419108-8,PB291
Standard Package 20
Win Source Part Number 1012842-RTD14005F
Ultra Librarian 3D Model Ultra Librarian RTD14005F CAD Model

Description

The TE Connectivity Potter & Brumfield Relays General Purpose Relay is a high-quality component that is designed to provide reliable performance.

  • Contact Rating (Current): 16 A
  • Switching Voltage: 400 VAC - Max
  • Coil Voltage: 5VDC
  • Coil Resistance: 62 Ohms
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Mounting: Through Hole
  • Termination Style: PC Pin
