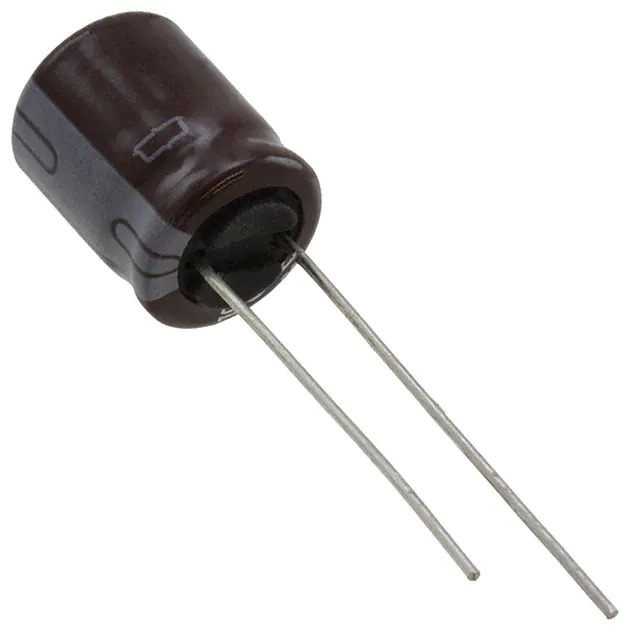

EKMQ630ELL101MHB5D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMQ630ELL101MHB5D

Part No EKMQ630ELL101MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V RADIAL / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Chemi-Con
Series KMQ
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 200 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357973-EKMQ630ELL101MHB5D
Ultra Librarian 3D Model Ultra Librarian EKMQ630ELL101MHB5D CAD Model

Description

The EKMQ630ELL101MHB5D is an aluminum electrolytic capacitor from Chemi-Con.

  • Capacitance: 100µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 200mA @ 120Hz
  • Ripple Current @ High Frequency: 300mA @ 100kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size/Dimension: 0.315" diameter (8.00mm)
  • Maximum Seated Height: 0.512" (13.00mm)
  • Application: General-Purpose
  • Lifetime: 1000 hours @ a temperature of 105°C
