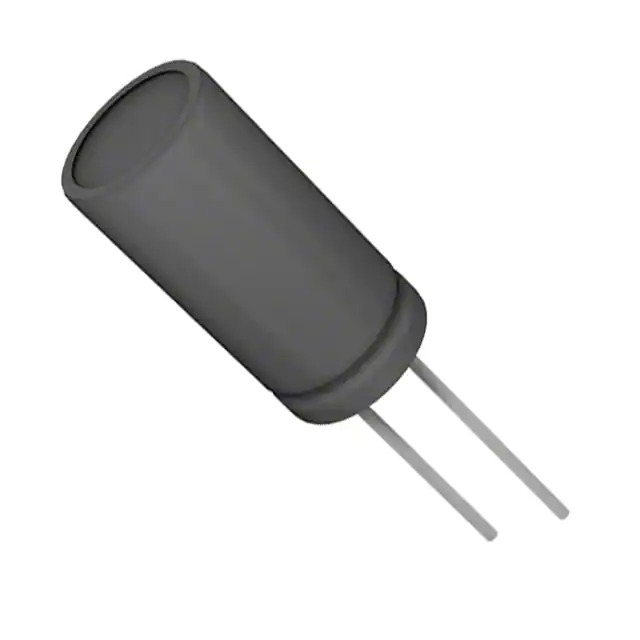

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLK
Package Tape & Box (TB)
Product Status Active
Capacitance 1500 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 948 mA @ 120 Hz
Ripple Current @ High Frequency 3.16 A @ 100 kHz
Impedance 24 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358016-16ZLK1500MT810X25
Ultra Librarian 3D Model Ultra Librarian 16ZLK1500MT810X25 CAD Model

Description

The Rubycon ZLK series aluminum electrolytic capacitor is a high-quality and reliable component suitable for a wide range of electronic applications.

  • Capacitance: 1500 μF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Size / Dimension: 0.394" (10.00mm)
  • Height - Seated (Max): 1.063" (27.00mm)
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 948 mA @ 120 Hz
  • Ripple Current @ High Frequency: 3.16 A @ 100 kHz
  • Polarization: Polarized
