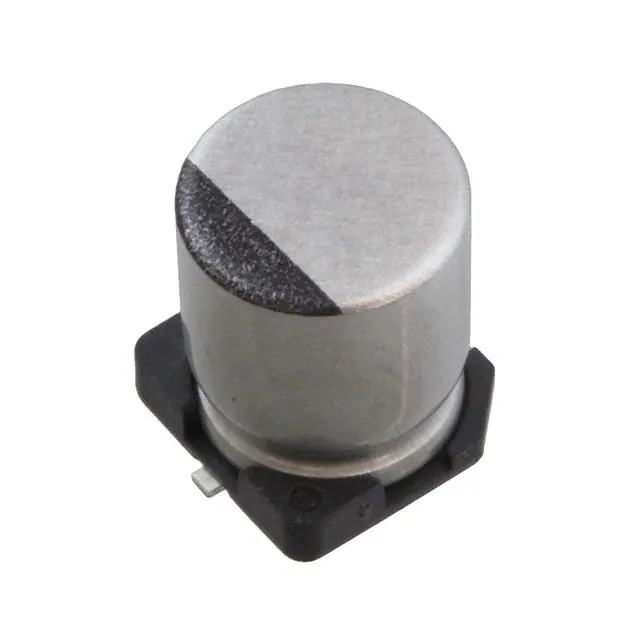

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 145 mA @ 120 Hz
Ripple Current @ High Frequency 174 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360156-25SEV100M6.3X8
Ultra Librarian 3D Model Ultra Librarian 25SEV100M6.3X8 CAD Model

Description

The 1360156-25SEV100M6.3X8 is a surface mount aluminum electrolytic capacitor designed for automotive applications from Rubycon.

  • Capacitance: 100 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Diameter: 0.248"
  • Height: 0.315"
  • AEC-Q200: Compatible
  • Series: SEV
  • Lifetime: 2000 hours @ 85°C
