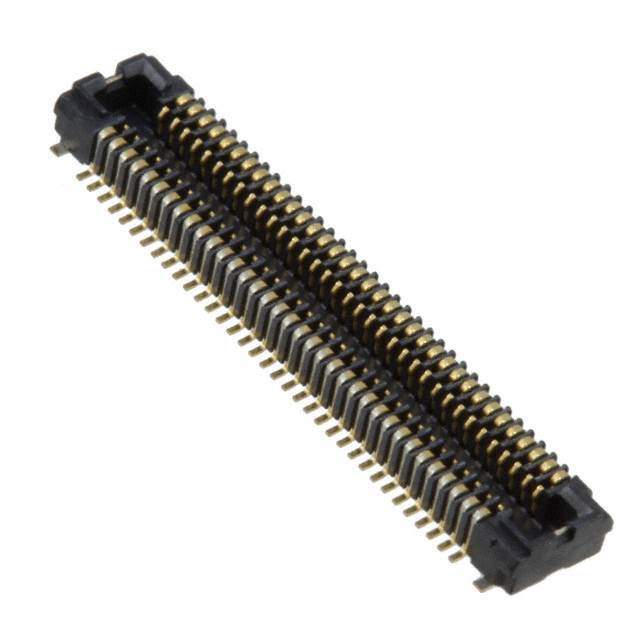

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 70
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2mm
Height Above Board 0.057" (1.45mm)
Win Source Part Number 1021096-AXT370124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT370124 CAD Model

Description

The 1021096-AXT370124 from Panasonic Electric Works is a connector that comes in reel-TR packaging with 70 positions and 0.016" (0.40mm) pitch.

  • Packaging: Reel-TR
  • Positions: 70
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Contact Type: Socket, Outer Shroud
  • Rows: Two
  • Contact Finish: Gold
  • Mated Stacking Height: 1.5mm and 2mm
  • Height Above Board: 0.057" (1.45mm)
  • Mounting Type: SMD (SMT)
  • Category: Connectors, Interconnects
  • Supply and Demand Status: Balance
  • Package Quantity: 3k pcs
