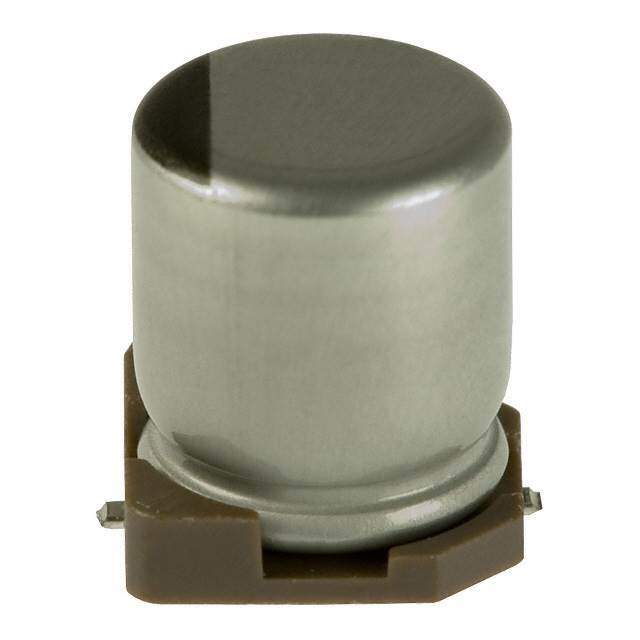

UUD1C221MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1C221MCL1GS

Part No UUD1C221MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nichicon
Packaging Reel
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 16V
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 140mA at 120Hz
Ripple Current at High Frequency 280mA at 100kHz
Impedance 340 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 900
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803525-UUD1C221MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1C221MCL1GS CAD Model

Description

The Nichicon UUD1C221MCL1GS capacitor is a surface mount, radial, can-SMD capacitor manufactured by Nichicon.

  • Capacitance: 220μF
  • Voltage Rating DC: 16V
  • Tolerance: ±20%
  • Impedance: 340 mOhms
  • Ripple Current @ 120Hz: 140mA
  • Ripple Current @ 100kHz: 280mA
  • Operating Temperature: -55℃ to 105℃
  • Lifetime: 2000 Hrs @ 105℃
  • Dimension: 0.248" Dia (6.30mm) x 0.303" (7.70mm)
  • Supply and Demand Status: Balanced
