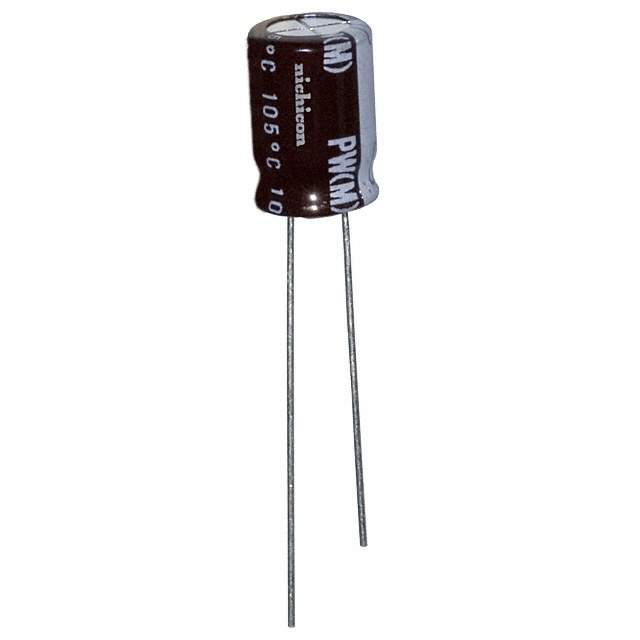

Same model may have multiple batches, images only for reference.

UPW1E221MPD

Name: UPW1E221MPD
Brand: Nichicon
SKU: 798907
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1E221MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 25V RADIAL / Cap Aluminum Lytic 220uF 25V 20% (8 X 11.5mm) Radial 3.5mm 555mA 3000h 105°C Automotive Bulk
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UPW
Packaging	Bulk
Capacitance	220μF
Tolerance	±20%
Voltage Rating DC	25V
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	360.75mA @ 120Hz
Impedance	117 mOhm
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Maximum)	0.453" (11.50mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	798907-UPW1E221MPD
Popularity	Medium
Supply and Demand Status	Balance
Family Name	UPW
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Halogen Free	Not Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UPW1E221MPD CAD Model

Description

The Nichicon UPW series capacitor is a high-quality component that is suitable for a wide range of applications.

Capacitance: 220μF
Tolerance: ±20%
Temperature Range: -55°C to 105°C
Package: Radial, can-style
Lead Spacing: 0.138" (3.50mm)
Diameter: 0.315" (8.00mm)
Impedance: 117 mOhm
Ripple Current: 360.75mA @ 120Hz
Lifetime: 3000 hours @ 105°C
