Same model may have multiple batches, images only for reference.

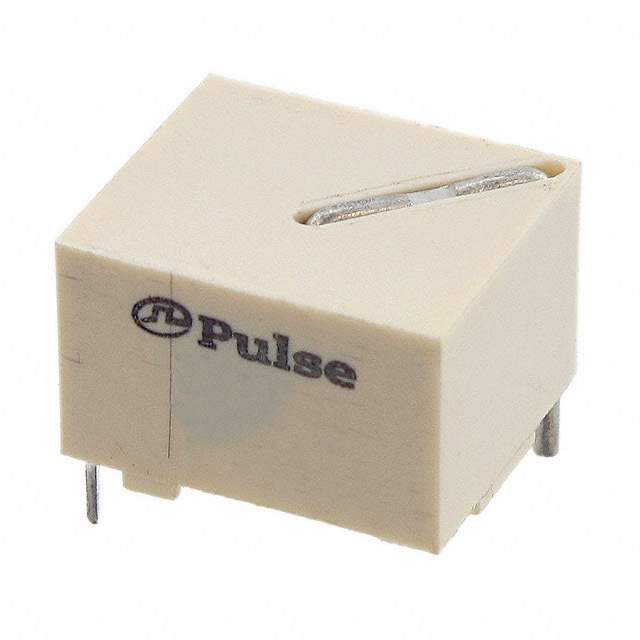

FIS155NL Real Image
Same model may have multiple batches, images only for reference.

FIS155NL

Part No FIS155NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description XFRMR CURR SENSE 25A 1:500 T/H
Datasheet
FIS155NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Bulk
Status Active
Frequency Range 500kHz Max
Type Invasive
Inductance 470mH
E.T. 1750V μS
DC Resistance (DCR) 16 Ohm Max
Mounting Through Hole
Height - Seated (Max) 0.492" (12.50mm)
Termination Style PC Pin
Weight 0.017 lb (7.71g)
Win Source Part Number 1038897-FIS155NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FIS155NL CAD Model

Description

The 1038897-FIS155NL is an invasive transformer from Pulse Electronics Corporation.

  • DC Resistance (DCR): 16 Ohm Max
  • Frequency Range: 500kHz Max
  • Function: Transfer electrical energy from one circuit to another using electromagnetic induction
  • Supply and Demand Status: Balanced
