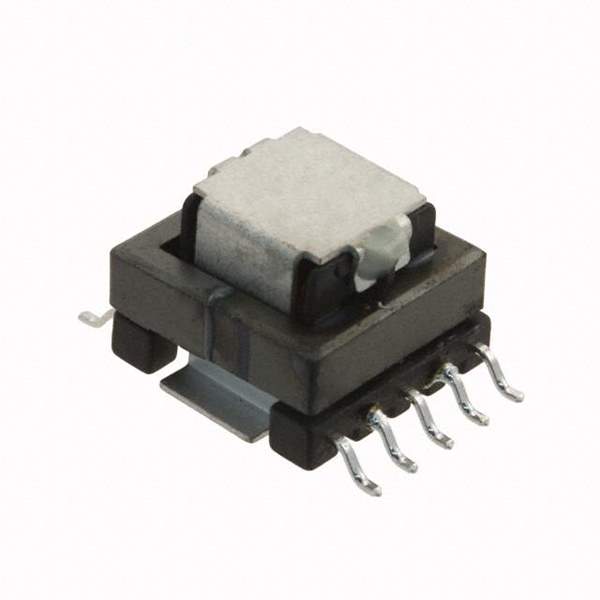

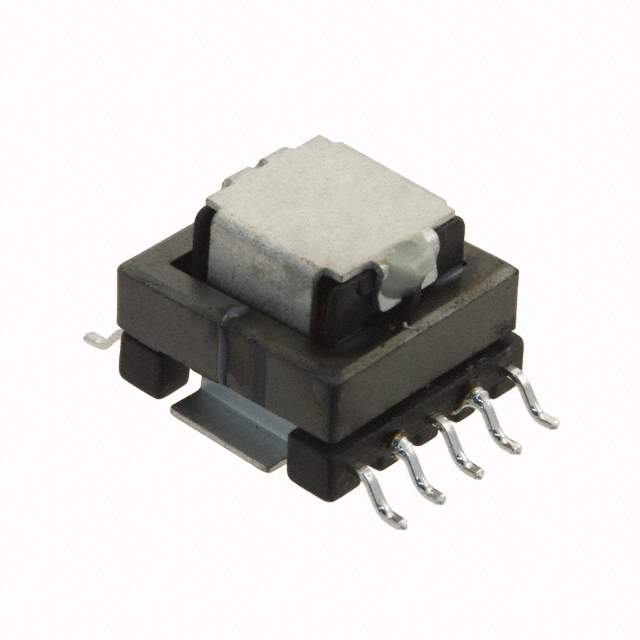

B82801C2245A200 Real Image
Same model may have multiple batches, images only for reference.

B82801C2245A200

Part No B82801C2245A200
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Description TRANSF CURRENT SENSE 22.4MH SMD
Datasheet
B82801C2245A200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Frequency Range 50kHz to 500kHz
Type Invasive
Inductance 22.4mH
DC Resistance (DCR) 0.28 mOhm Primary, 2.9 Ohm Secondary
Mounting SMD (SMT)
Height - Seated (Max) 0.394" (10.00mm)
Termination Style Gull Wing
Weight 0.011 lb (4.99g)
Win Source Part Number 049020-B82801C2245A200
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82801C2245A200 CAD Model

Description

Overview

The B82801C2245A200 is specially designed for high-frequency applications, providing optimal performance and stability.

Features and Benefits

  • High-frequency compatibility
  • Excellent stability and efficiency
  • Minimal power loss

Applications

  • Telecommunication systems
  • High-frequency signal processing
  • Advanced computing systems

Additional Details

Constructed for precision and reliability, this component ensures minimal power loss, making it ideal for high-stakes projects.
