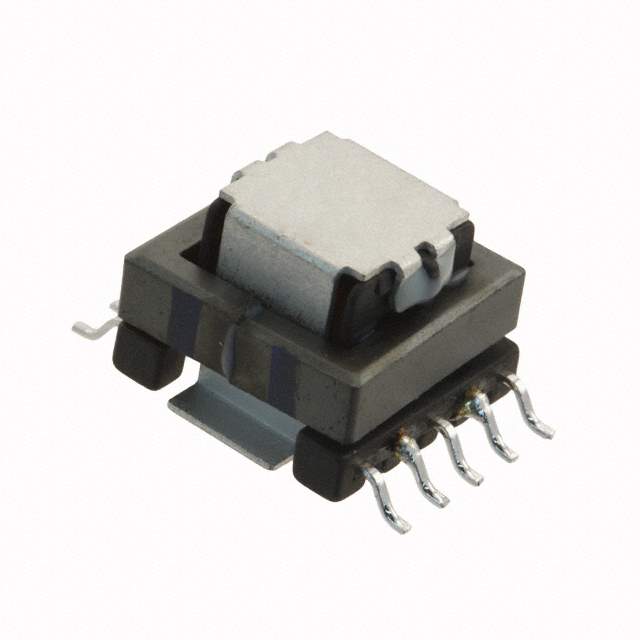

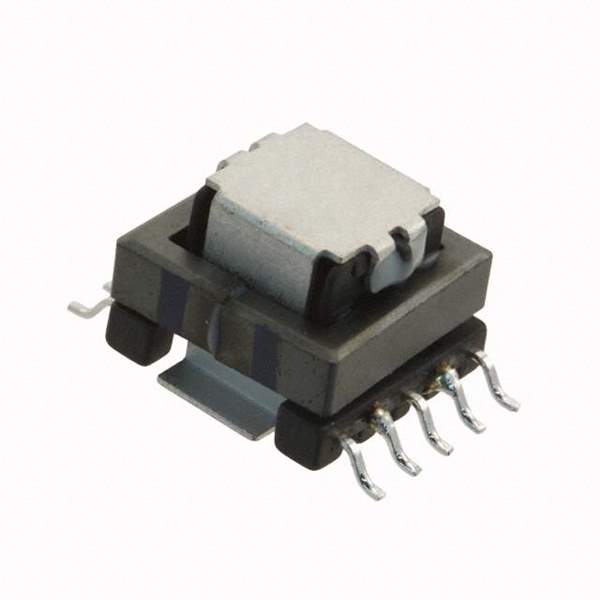

B82801C0565A100 Real Image
Same model may have multiple batches, images only for reference.

B82801C0565A100

Part No B82801C0565A100
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 SMD / 1:100 Current Sense Transformer 50kHz ~ 500kHz 0.28mOhm Primary, 1Ohm Secondary 5.6 mH Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr EPCOS - TDK Electronics
Series B82801C
Package Tape & Reel
Frequency Range 50kHz ~ 500kHz
Type Invasive
Inductance 5.6 mH
DC Resistance (DCR) 0.28mOhm Primary, 1Ohm Secondary
Mounting SMD (SMT)
Dimension 0.560" L x 0.530" W (14.22mm x 13.46mm)
Height - Seated (Max) 0.394" (10.00mm)
Termination Style Gull Wing
Weight 0.011 lb (4.99 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 495-4442-1,B82801C565A100,B82801C 565A100,495-4442-6,495-4442-2
Standard Package 200
Win Source Part Number 1039318-B82801C0565A100
Ultra Librarian 3D Model Ultra Librarian B82801C0565A100 CAD Model

Description

The EPCOS (TDK) B82801C0565A100 is a current sense transformer that comes in a tape and reel package.

  • Inductance: 5.6mH
  • DC Resistance: 0.28mΩ primary and 1Ω secondary
  • Mounting: Surface Mount
  • Frequency Range: 50kHz to 500kHz
  • Height: 0.394 inches
  • Weight: 0.011 pounds
