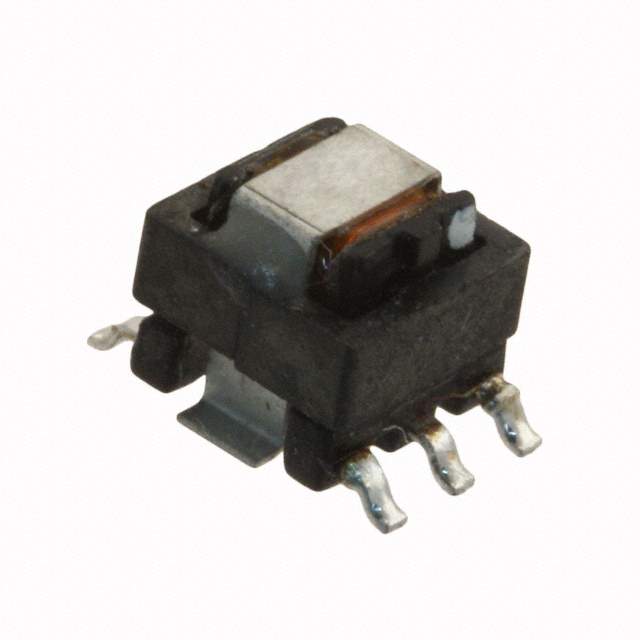

B82801B0504A050 Real Image
Same model may have multiple batches, images only for reference.

B82801B0504A050

Part No B82801B0504A050
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr EPCOS - TDK Electronics
Series B82801B
Package Tape & Reel
Frequency Range 50kHz ~ 1MHz
Type Invasive
Inductance 500 µH
DC Resistance (DCR) 0.8mOhm Primary, 1.5Ohm Secondary
Mounting SMD (SMT)
Dimension 0.280" L x 0.320" W (7.11mm x 8.13mm)
Height - Seated (Max) 0.200" (5.08mm)
Termination Style Gull Wing
Weight 0.014 oz (0.4 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1314960-B82801B0504A050
Ultra Librarian 3D Model Ultra Librarian B82801B0504A050 CAD Model

Description

The EPCOS (TDK) B82801B series current sense transformer is an ideal component for various applications.

  • Type: Invasive
  • Termination Style: Gull-Wing
  • Mounting Type: Surface-Mount Device
  • Package: Tape and Reel
  • Inductance: 500 μH
  • DC Resistance (DCR) Primary: 0.8mOhm
  • DC Resistance (DCR) Secondary: 1.5Ohm
  • Dimension: 0.280" L x 0.320" W (7.11mm x 8.13mm)
  • Height: 0.200" (5.08mm)
