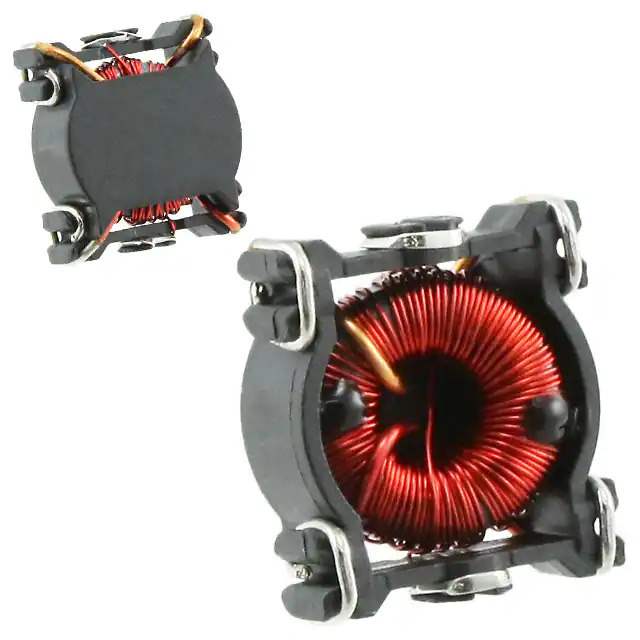

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr Pulse
Series PE-68XXXNL
Package Tape & Reel
Product Status Active
Frequency Range 50kHz ~ 500kHz
Type Invasive
Inductance 14.8 mH
DC Resistance (DCR) 1.15mOhm Primary, 930mOhm Secondary
Mounting Type Surface Mount
Size / Dimension 0.495" L x 0.490" W (12.57mm x 12.45mm)
Height - Seated (Max) 0.280" (7.11mm)
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 654199-PE-68280NLT
Ultra Librarian 3D Model Ultra Librarian PE-68280NLT CAD Model

Description

The 654199-PE-68280NLT is a current sense transformer from Pulse.

  • Series: PE-68XXXNL
  • Type: Invasive
  • Package: Tape & Reel
  • Size/Dimension: 0.495" L x 0.490" W (12.57mm x 12.45mm)
  • Height (Seated): 0.280" (7.11mm)
  • Standard Package: 300 pieces
  • Frequency Range: 50kHz to 500kHz
  • DC Resistance (DCR) Primary: 1.15mOhm
  • DC Resistance (DCR) Secondary: 930mOhm
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.31.2000
  • Status: Active
