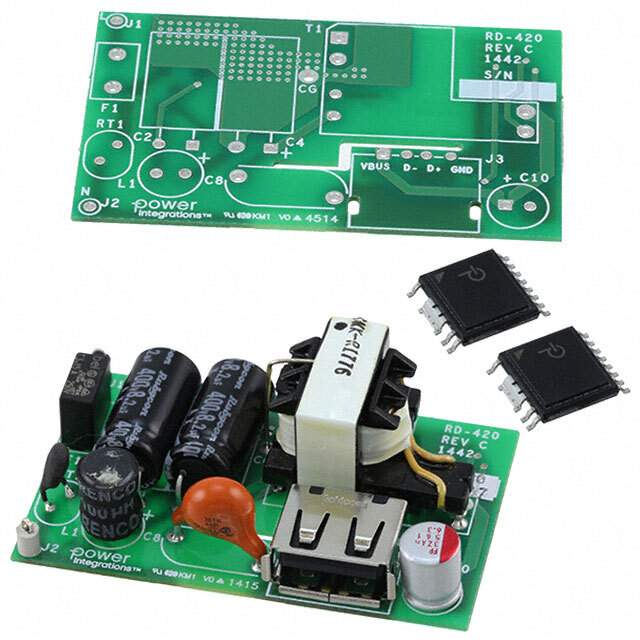

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Power Integrations
Series InnoSwitch-CH
Main Purpose AC/DC, Primary and Secondary Side
Outputs and Type 1, Isolated
Power - Output 10W
Voltage - Output 5V
Output Current 2A
Voltage - Input 85 ~ 264 VAC
Regulator Topology Flyback
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part INN2023K
Win Source Part Number 776806-RDK-420
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RDK-420 CAD Model

Description

The Power Integrations InnoSwitch-CH is a power supply regulator topology flyback series manufactured by Power Integrations.

  • Voltage Output: 5V
  • Voltage Input: 85 ~ 264 VAC
  • Power Output: 10W
  • Regulator IC: INN2023K
  • Board Type: Fully populated
  • Isolated Output: One
  • Temperature Range: -55°C to 100°C
  • Kit Contents: board(s)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
